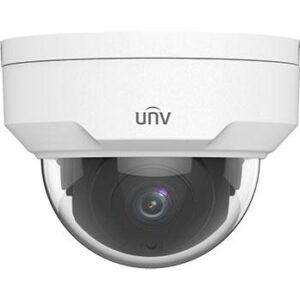

Specifications Uniview IPC322LB-SF28-A
| Features | Description |
|---|---|
| Product Type | 2MP Vandal-resistant Network IR Fixed Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | Fixed 2.8mm, F2.0 |
| Horizontal FOV | 106.7° |
| IR Range | Up to 30m |
| Video Compression | Ultra 265, H.265, H.264 |
| Storage | Not Supported |
| Power | DC 12V ±25% or PoE IEEE 802.3af |
| Protection | IP67, IK10, 4KV Surge Protection |
| CAMERA | |
|---|---|
| Sensor | 1/2.8″ Progressive Scan 2MP CMOS |
| Resolution | 1920 × 1080 |
| Shutter | Auto / Manual, 1/1s to 1/100000s |
| Minimum Illumination | 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| WDR | DWDR |
| S/N Ratio | >52dB |
| Noise Reduction | 2D/3D DNR |
| LENS & DORI | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Iris | F2.0 |
| Horizontal FOV | 106.7° |
| Vertical FOV | 57.1° |
| Diagonal FOV | 115.7° |
| Detect | 43.4m |
| Observe | 17.4m |
| Recognize | 8.7m |
| Identify | 4.3m |
| Adjustment | Pan: 3°–360°, Tilt: 0°–75° |
| ILLUMINATOR | |
|---|---|
| Supplemental Light | IR |
| IR Range | Up to 30m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| VIDEO | |
|---|---|
| Compression | Ultra 265, H.265, H.264 |
| H.264 Profile | Baseline, Main, High Profile |
| Main Stream | 1080P (1920 × 1080) up to 30fps |
| Sub Stream | D1 / 640 × 360 / 2CIF / CIF up to 30fps |
| Video Bit Rate | 128Kbps–16Mbps |
| OSD | Up to 4 OSD areas |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| IMAGE | |
|---|---|
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| HLC | Supported |
| BLC | Supported |
| Digital Defog | Supported |
| Flip | Normal, Vertical, Horizontal, 180° |
| Dewarping | Not Supported |
| NETWORK | |
|---|---|
| Network Interface | 1 × 10/100M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| ONVIF | Supported |
| API | Supported |
| Client Software | EZStation, EZView, EZLive |
| Web Browser | Chrome, Firefox, Edge |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100M Base-TX Ethernet |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Reset Button | N/A |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Max. 5.0W |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Φ109 × 81mm |
| Net Weight | 0.35kg |
| Material | Metal + Plastic |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C |
| Storage Humidity | ≤95% RH, non-condensing |
Note: The IPC322LB-SF28-A is a 2MP fixed IR dome network camera with a 2.8mm lens, 30m IR range, Ultra 265 compression, PoE support, IP67 weather protection and IK10 vandal resistance.
Important: Specifications may vary by firmware version or production revision. Please verify the latest manufacturer datasheet before installation or project submission.
