| Features |
Description |
| Device Type |
4MP ColorHunter Fixed Dual-Light Turret Network Camera |
| Image Sensor |
1/3.0″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
4.0mm Fixed Lens |
| Field of View |
91.2° Horizontal |
| WDR |
120dB True WDR |
| IR Range |
Up to 30m |
| White Light Range |
Up to 30m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Cross Line Detection, Intrusion Detection, Motion Detection, Ultra Motion Detection, Tampering Alarm and Audio Detection |
| Audio |
Built-in Microphone and Speaker, Two-Way Audio |
| Storage |
MicroSD up to 512GB |
| Protection |
IP67 / IK10 |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA |
| Image Sensor |
1/3.0″, 4.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Minimum Illumination |
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with Light |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N |
>52dB |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| LENS |
| Lens Type |
Fixed-Focal |
| Focal Length |
4.0mm |
| Lens Mount |
M12 |
| Iris |
F1.6 |
| Horizontal Field of View |
91.2° |
| Vertical Field of View |
47.9° |
| Diagonal Field of View |
95.9° |
| DORI |
| Detect |
90m |
| Observe |
36m |
| Recognize |
18m |
| Identify |
9m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
4MP (2688 × 1520), Max 25fps; 4MP (2560 × 1440), Max 25fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Dual Streams |
| U-Code |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES |
| Cross Line Detection |
Supported |
| Intrusion Detection |
Supported, Based on Human Body Detection |
| Motion Detection |
Up to 4 Areas |
| Ultra Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| ILLUMINATOR |
| Light Type |
IR + White Light |
| IR Range |
Up to 30m |
| White Light Range |
Up to 30m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| AUDIO |
| Built-in Microphone |
Supported |
| Built-in Speaker |
Supported |
| Audio Compression |
G.711U / G.711A |
| Audio Bit Rate |
64Kbps |
| Two-Way Audio |
Supported |
| Audio Suppression |
Supported |
| Sampling Rate |
8KHz |
| STORAGE |
| Edge Storage |
MicroSD, Up to 512GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API / SDK |
| Network Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Client |
EZStation / EZView / EZLive / Web Browser |
| INTERFACE |
| Network |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio |
Built-in Microphone / Speaker |
| Alarm I/O |
Not Supported |
| Wi-Fi |
Not Supported |
| Video Output |
Not Supported |
| Reset Button |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
5.0W |
| Surge Protection |
4KV |
| Protection |
IP67 |
| Vandal Resistance |
IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Φ118 × 96mm |
| Weight |
0.30kg |
| Material |
Plastic |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Humidity |
≤95% RH, Non-Condensing |

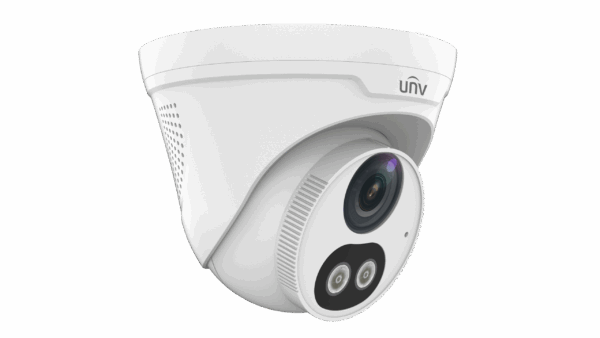

Note: The Uniview IPC3614LE-ADF40KC-WL is a 4MP ColorHunter Fixed Dual-Light Turret Network Camera featuring a 1/3.0″ progressive scan CMOS sensor, 4.0mm fixed F1.6 lens, 2688 × 1520 resolution, 91.2° horizontal viewing angle and 120dB True WDR. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart IR and White Light up to 30m, human-body-based intrusion detection, built-in microphone and speaker, two-way audio, MicroSD storage up to 512GB, PoE (IEEE 802.3af), IP67 and IK10 protection.
Important: The IPC3614LE-ADF40KC-WL is a Fixed Turret / Eyeball Camera, not a PTZ and not a varifocal camera. It uses a 4.0mm fixed lens with a 91.2° horizontal field of view. Compared with the 2.8mm version, the 4.0mm lens provides a narrower viewing angle and longer DORI distances. The camera provides both IR and White Light up to 30m.
