| Features |
Description |
| Device Type |
2MP LightHunter IR Network PTZ Dome Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Optical Zoom |
4X |
| Focal Length |
2.8 ~ 12mm |
| WDR |
120dB Optical WDR |
| IR Range |
Up to 50m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Motion Detection, ROI, Smart IR, HLC, BLC and Dewarping |
| Audio |
Built-in Microphone and Speaker |
| Storage |
MicroSD up to 128GB |
| Protection |
IP66 |
| CAMERA |
| Image Sensor |
1/2.8″, 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination |
Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1s ~ 1/100000s |
| WDR |
120dB Optical WDR |
| S/N |
>52dB |
| Digital Noise Reduction |
2D / 3D DNR |
| LENS |
| Lens Type |
2.8 ~ 12mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom |
4X |
| Horizontal Field of View |
32.5° ~ 95.7° |
| Vertical Field of View |
18.4° ~ 52.2° |
| Diagonal Field of View |
36.9° ~ 100.8° |
| DORI |
| Detect |
43.4m ~ 186.2m |
| Observe |
17.4m ~ 74.5m |
| Recognize |
8.7m ~ 37.2m |
| Identify |
4.3m ~ 18.6m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
1080P (1920 × 1080), Max 30fps / 720P (1280 × 720), Max 30fps |
| Sub Stream |
720P (1280 × 720), Max 30fps |
| Third Stream |
CIF (352 × 288), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| H.264 Code Profile |
Baseline Profile / Main Profile |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 Areas |
| ROI |
Up to 8 Areas |
| Motion Detection |
Up to 4 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Dewarping |
Supported |
| Image Flip |
Normal / Vertical / Horizontal / 180° |
| PTZ |
| Pan Range |
345° |
| Pan Speed |
0.1°/s ~ 50°/s |
| Preset Pan Speed |
50°/s |
| Tilt Range |
90° |
| Tilt Speed |
0.1°/s ~ 40°/s |
| Preset Tilt Speed |
40°/s |
| Presets |
256 |
| Patrol |
Preset Patrol / Route Patrol |
| AUDIO |
| Audio Compression |
G.711 |
| Sampling Rate |
8KHz |
| Audio Suppression |
Supported |
| Built-in Microphone |
Supported |
| Built-in Speaker |
Supported |
| Two-Way Audio |
Supported |
| STORAGE |
| Edge Storage |
MicroSD, Up to 128GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API |
| Network Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL |
| Client |
EZStation / EZView / EZLive |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3at) |
| Maximum Power Consumption |
16W |
| Surge Protection |
4KV |
| Protection |
IP66 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Ø133 × 248.4mm |
| Net Weight |
0.87kg |
| Gross Weight |
1.13kg |
| Material |
Metal + Plastic |
| Operating Temperature |
-20°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-20°C to 60°C |
| Storage Humidity |
≤95% RH, Non-Condensing |

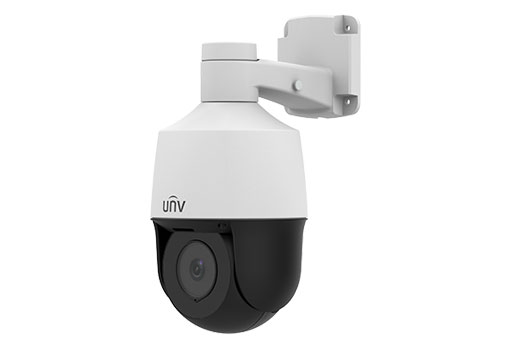

Note: The Uniview IPC672LR-AX4DUPK is a 2MP LightHunter IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 2.8~12mm motorized zoom lens and 4X optical zoom. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, 120dB Optical WDR, Smart IR up to 50m, built-in microphone and speaker, MicroSD storage up to 128GB and ONVIF integration. The camera supports DC 12V and PoE (IEEE 802.3at).
Important: The IPC672LR-AX4DUPK is a 2MP PTZ Dome Camera with 4X optical zoom, 120dB Optical WDR and Smart IR up to 50m. It supports built-in microphone and speaker, two-way audio, MicroSD storage up to 128GB, 256 presets, 4KV surge protection and IP66 protection. Maximum power consumption is 16W.
