| Features |
Description |
| Device Type |
5MP Panoramic IR Fixed Fisheye Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
2592 × 1944 |
| Lens |
1.4mm Fixed Fisheye Lens |
| Field of View |
360° |
| WDR |
120dB True WDR |
| IR Range |
Up to 10m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features |
Motion Detection, Tampering Alarm, Audio Detection and Statistical Analysis Heat Map |
| Audio |
Built-in Dual Microphones, Audio I/O and Two-Way Audio |
| Storage |
MicroSD up to 512GB |
| Protection |
IP66 / IK10 |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA |
| Image Sensor |
1/2.8″, 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2592 × 1944 |
| Minimum Illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1 ~ 1/100000s |
| WDR |
120dB True WDR |
| S/N |
>55dB |
| LENS |
| Lens Type |
Fixed Fisheye |
| Focal Length |
1.4mm |
| Iris |
F2.0, Fixed |
| Field of View |
360° |
| DORI |
| Detect |
31.5m |
| Observe |
12.6m |
| Recognize |
6.3m |
| Identify |
3.2m |
| VIDEO |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream |
5MP (2592 × 1944), Max 30fps |
| Sub Stream |
1080P (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Third Stream |
D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate |
128Kbps ~ 16Mbps |
| Video Stream |
Triple Streams |
| U-Code |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 Areas |
| ROI |
Up to 8 Areas |
| IMAGE |
| White Balance |
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction |
2D / 3D DNR |
| Smart IR |
Supported |
| BLC |
Supported |
| HLC |
Not Supported |
| Defog |
Digital Defog |
| Image Flip |
Normal / Vertical / Horizontal / 180° |
| Dewarping |
Not Supported |
| SMART FEATURES |
| Statistical Analysis |
Heat Map |
| Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| ILLUMINATOR |
| Light Type |
IR |
| IR Range |
Up to 10m |
| IR Wavelength |
850nm |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| AUDIO |
| Built-in Microphone |
2 × Built-in Microphones |
| Audio Compression |
G.711 |
| Audio Bit Rate |
64Kbps |
| Audio Sampling Rate |
8KHz |
| Two-way Audio |
Supported |
| STORAGE |
| Edge Storage |
MicroSD, Up to 512GB |
| Network Storage |
ANR / NAS (NFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Base-TX Auto-adaptive Ethernet |
| ONVIF |
Profile S / Profile G / Profile T |
| Compatible Integration |
ONVIF / API / SDK |
| Network Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Client |
EZStation / EZView / EZLive / Web Browser |
| PANORAMIC DISPLAY |
| Mounting |
Table / Wall / Ceiling |
| Display Modes |
Fisheye View, 360° Panoramic + 1PTZ, 180° Panoramic, Fisheye + 3PTZ, Fisheye + 4PTZ, 360° Panoramic + 6PTZ, Fisheye + 8PTZ |
| INTERFACE |
| Network |
1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio I/O |
1 × Audio Input / 1 × Audio Output |
| Alarm I/O |
1 × Input / 1 × Output |
| Built-in Microphone |
2 × Microphones |
| Built-in Speaker |
Not Supported |
| Wi-Fi |
Not Supported |
| Video Output |
Not Supported |
| POWER & PROTECTION |
| Power Supply |
DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption |
8.5W |
| Surge Protection |
4KV |
| Protection |
IP66 |
| Vandal Resistance |
IK10 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
Φ125 × 43.7mm |
| Weight |
0.36kg |
| Material |
Metal + Plastic |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-30°C to 60°C |
| Storage Humidity |
≤95% RH, Non-Condensing |

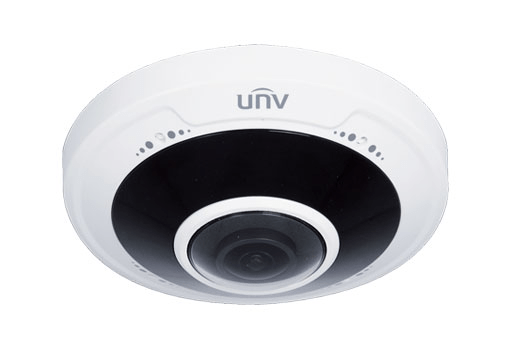

Note: The Uniview IPC815SB-ADF14K-I0 is a 5MP panoramic IR fixed fisheye network camera featuring a 1/2.8″ progressive scan CMOS sensor, 1.4mm F2.0 fixed fisheye lens, 2592 × 1944 resolution at up to 30fps, 360° field of view and 120dB True WDR. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart IR up to 10m, built-in dual microphones, two-way audio, alarm I/O, MicroSD storage up to 512GB, PoE (IEEE 802.3af), IP66 and IK10 protection.
Important: The IPC815SB-ADF14K-I0 is a Fisheye / Panoramic Fixed Dome Camera with a 1.4mm fixed lens and 360° field of view. It is not a mechanical PTZ camera. The camera can provide multiple virtual PTZ display views from the 360° fisheye image through software, including 360° Panoramic + 1PTZ, Fisheye + 3PTZ, Fisheye + 4PTZ, 360° Panoramic + 6PTZ and Fisheye + 8PTZ.
