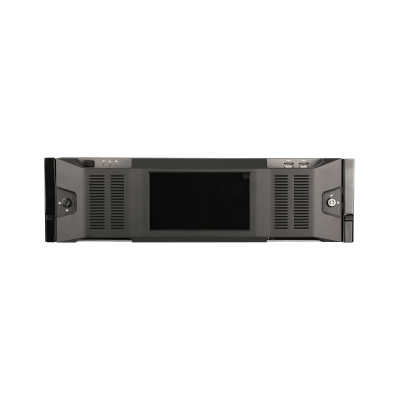

Dahua รุ่น IVSS7016DR-4I

3U 16HDD Intelligent Video Surveillance Server

  • ระบบประมวลผล Industry embedded micro-controller
  • รองรับ Bandwidth สูงสุด 512 Mbps
  • ใส่กล้อง IP ได้สูงสุด 256 ตัว
  • Up to 64-channel perimeter protection
  • Up to 32-channel face recognition with normal IPC
  • Up to 80-channel face recognition with face detection IPC
  • Up to 16-channel video metadata
  • Up to 50 face databases with 300,000 face pictures in total
  • ซัพพอร์ท RAID 0/1/5/6/10
  • SAS3.0 for storage extension
  • มีช่อง HDMI 3 / VGA 2
  • Redundant power

หมวดหมู่: , , ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
System
Main Processor Industry embedded micro-controller
Operating System Embedded Linux OS
Operation Interface WEB (PCAPP), local GUI
AI Applications
AI by Camera Supports AI by camera function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection
AI by Device Supports AI by IVSS function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection
Perimeter Protection
Perimeter Function (AI by Device) 64-channel
Perimeter Function (AI by camera) 256-channel
Human Face Detection
Human Face Properties Supports 6 properties: Gender, age range (6 levels), glasses, expression (8 types), mouth mask, and beard
Face Detection Performance (AI by Device) (1080P) (Channel Number) 32-channel
Face Detection Performance (AI by camera) (Channel Number) 80-channel
Human Face Recognition
Face Database Capacity 50 face databases with 300,000 face pictures in total
Human Face Recognition Performance (AI by Device) (1080P)(Channel Number) 32-channel with normal IP camera

80-channel with face detection IP camera (Totally 80 face pictures analyzed per second)
Human Face Recognition Performance (AI by camera) (Channel Number) 80-channel
ANPR
Plate Database Capacity 50 plate databases with 300,000 plate numbers in total

Supports black list/white list
Plate Detection Performance by ITC Camera (Channel Number) 64-channel
Video Metadata
Human Body Properties Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella
Vehicle Properties Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place
Non-motorized Vehicle Properties Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet
Metadata Performance (AI by Device) (1080P) (Channel Number) 16-channel
Metadata Performance (AI by camera) (Channel Number) 64-channel
Video Parameters
Remote Connection 256-channel
Network Bandwidth Incoming bandwidth: 512Mbps
recording bandwidth: 384Mbps
outgoing bandwidth: 128Mbps
Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/CIF/QCIF
Decoding Capability 6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps)/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps)
Video Output 1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source

Supports 4K output
Multi-screen Display Customized display

Max. 36-channel local live view

Max.16-channel PCAPP live view
Third-party Support Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung
Operating System Embedded Linux OS
Operation Interface WEB(PCAPP), local GUI
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio Compression G.711A/G.711U/PCM/G726
Network
Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone iOS, Android
Interoperability ONVIF (Profile S, T and G), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search Search video detection/manual record/IO alarm/intelligent event/all record file
Storage Medium Internal HDD, SAS disk array enclosure
Backup Method HDD, peripheral USB storage device
Playback Function Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play

Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off
Storage
HDD Group 16
RAID RAID 0/1/5/6/10
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction
Intelligent Alarm Human face detection, human face recognition, video metadata (person/vehicle/non-motorized vehicle),perimeter protection (intrusion, tripwire),plate recognition
Alarm Linkage Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input 1-channel (reserved)
Audio Output 1-channel, speaker output, audio linkage output
Alarm Input 16-channel
Alarm Output 8-channel
Internal HDD 16 slots, SATA3.0/SAS. Max.10T/HDD
eSATA 1 port (reserved)
SAS 2 SAS3.0 ports
RS-232 1 port, for debug or transparent COM data
RS-485 1 port, control peripheral PTZ and so on

Supports various protocols
USB 4 ports

2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel
HDMI 3 ports. 4K output
VGA 1 port
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 2 ports
PoE N/A
General Parameters
Power Supply 100V AC–240V AC 50±2%Hz
Power Consumption 110W (Without HDD, idling)
Net Weight 16 kg (35.27 lb)
Gross Weight 17 kg (37.48 lb)
Dimensions

(W × L × H)

 Chassis: 444.8 mm × 539.4 mm × 133.2 mm

(17.51 ” × 21.24 ” × 5.24 “)
Max. size: 485 mm (with hanger) × 539.4 mm × 133.2 mm (with feet mat) (19.09 ” × 21.24 ” × 5.24 “)
Packaging Dimensions

(W × L × H)

 689 mm× 779 mm × 464 mm

(27.13 ” × 30.67 ” × 18.27 “)
Operating Conditions 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Strorage Conditions 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1

FCC: Part 15 Subpart A

UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
