| Features |
Description |
| Product Type |
RG 6/U Coaxial Cable |
| Grade |
STANDARD+ |
| Application |
CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Inner Conductor |
Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric |
Foamed Polyethylene, 4.57 mm |
| Shield Tape |
AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire |
Aluminum, 0.16 mm x 144 Wires |
| Shield Coverage |
96% |
| Jacket |
Black PVC/LSZH |
| Impedance |
75 Ohm |
| Cable Diameter |
Approx. 6.9 mm |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m ± 3 pF/m |
| Velocity Ratio |
82% |
| DCR Inner Conductor |
99 Ohm/km |
| DCR Shield |
17.5 Ohm/km |
| Dielectric Strength |
2500 VAC |
| Return Loss (5-470 MHz) |
≥ 25 dB |
| Return Loss (470-1000 MHz) |
≥ 20 dB |
| Return Loss (1000-2000 MHz) |
≥ 15 dB |
| Screening Factor |
VHF: ≤ 85 dB / UHF: ≤ 75 dB |
| Physical Characteristics |
Description |
| Minimum Bending Radius |
10 x Cable Diameter during Installation |
| Operating Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
Black |
| Packaging |
500 m / Reel in Box |
| Standards |
Description |
| Standard |
ANSI/TIA-568-C.4 |
| Compliance |
RoHS Compliant |

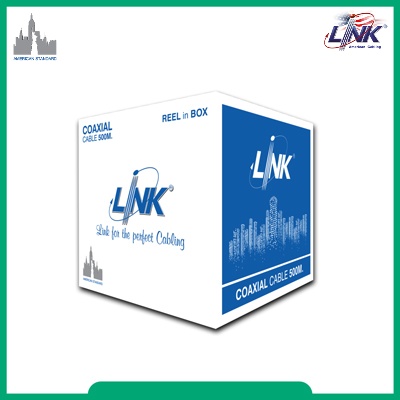

Note: The LINK CB-0109S+ is an RG 6/U STANDARD+ Coaxial Cable featuring a 1.02 mm Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 96% aluminum braid shielding, and a bonded AL/P-Foil shield. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, and RF signal transmission.
Important: The CB-0109S+ uses a 75 Ohm impedance and is supplied in a 500 m reel. The 96% shielding provides improved protection against EMI/RFI interference compared with standard RG6 cable.
