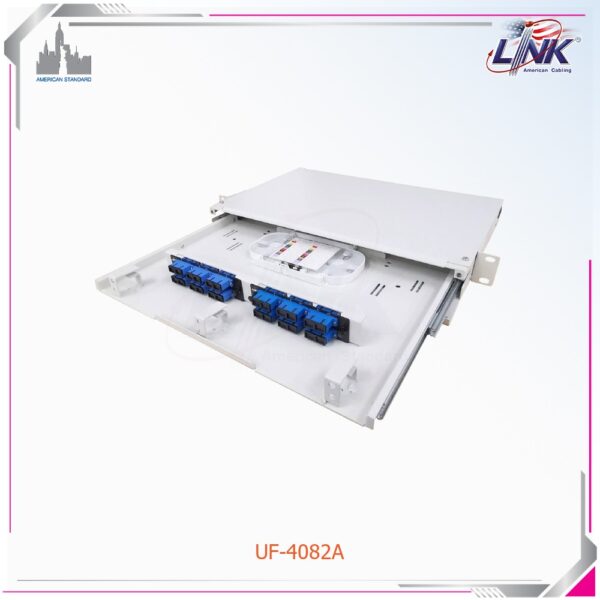

Specifications LINK UF-4082A
| Features | Description |
|---|---|
| Product Type | Fiber Distribution Unit (FDU) Slide |
| Model | UF-4082A |
| Fiber Capacity | 12–24 Cores |
| Rack Unit | 1U |
| Splice Tray | 1 Splice Tray |
| Snap-In Plate Capacity | 2 Snap-In Plates |
| In/Out Cable Port | 2 Ports |
| Design | Slide Drawer with Cover |
| Adapter Compatibility | Supports LINK ST, SC, FC and LC Snap-In Adapter Plates |
| Material | Aluminum Body 2 mm, Cold-Rolled Steel Inner Plate 1.5 mm |
| Installation | 19-inch Rack Mount |
| Operating Temperature | -40°C to 70°C |
| Dimensions | H 432 × W 282 × D 44 mm |
| Color | Light Gray |
| Accessories | Splice Tray, Cable Ties, Screws & Nuts, Protector Sleeves and Labeling Paper |
| Application | Description |
|---|---|
| Fiber Distribution | Provides a centralized point for fiber termination, splicing, storage and distribution. |
| FTTx / FTTR Network | Suitable for FTTx, FTTR and fiber optic access networks. |
| Data Center | Suitable for fiber distribution in data centers and communication rooms. |
| Rack Mount Installation | Designed for installation in standard 19-inch network racks and cabinets. |
Note: UF-4082A is a compact 1U Fiber Distribution Unit with a slide drawer design, supporting 12–24 fiber cores and up to 2 Snap-In Adapter Plates.
Important: UF-4082A is supplied without pigtails and fiber optic adapters. Adapter Snap-In Plates are selected separately according to the required connector type.
