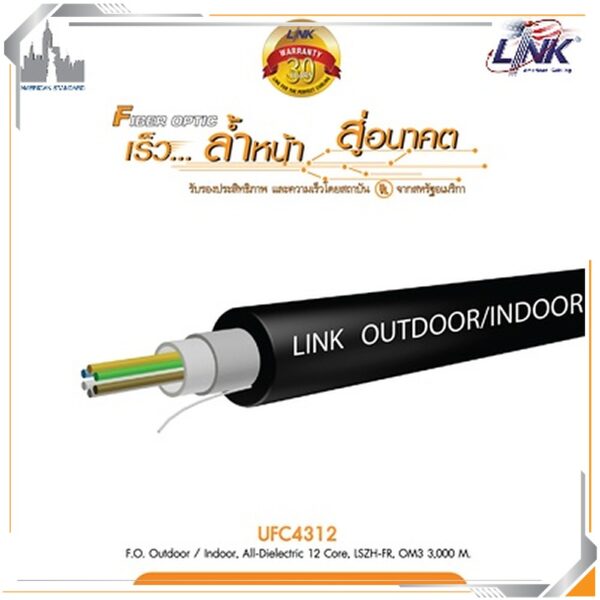

LINK UFC4312
LINK UFC4312
12 Core OM3 Outdoor/Indoor Fiber Optic Cable
- 12 Core OM3 50/125μm Multimode fiber optic cable
- Outdoor/Indoor All-Dielectric design with LSZH-FR jacket
- Supports duct and aerial installation with UV-resistant outer sheath
- Complies with ANSI/TIA-568.3, IEC 60794, ISO/IEC 11801 and ITU-T G.651 standards
- Supports 10G, 25G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and CCTV applications
- Ideal for campus backbone, inter-building and enterprise fiber optic networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC4312
| Features | Description |
|---|---|
| Device Type | Outdoor / Indoor Fiber Optic Cable |
| Fiber Type | OM3 50/125μm Multi-Mode Fiber |
| Core Count | 12 Core |
| Cable Construction | All-Dielectric, Single Loose Tube |
| Jacket Material | UV-Resistant Black PE with FR-LSZH Outer Sheath |
| Installation | Indoor / Outdoor, Duct and Lash Aerial |
| Water Protection | Waterproof Compound and Water-Blocking E-Glass Yarn |
| Tensile Strength | All-Dielectric E-Glass Yarn Reinforcement |
| Cable Length | 4,000 Meters per Drum (Available by Meter) |
| Application | Campus Backbone, Building Backbone, FTTx, CCTV, Data Center and Enterprise Networks |
| Fiber Standard | ITU-T G.651.1 OM3 Multi-Mode |
|---|---|
| Fiber Diameter | 50/125μm |
| Flame Rating | FR-LSZH (Flame Retardant Low Smoke Zero Halogen) |
| Installation Type | Outdoor / Indoor Duct and Aerial Installation |
| Standards | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ISO/IEC 11801:2017, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, ITU-T G.651.1, RoHS |
| Application | 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV, CCTV and Backbone Networks |
| SMART FEATURES | |
|---|---|
| OM3 XG Fiber | Optimized for 10G, 40G and 100G High-Speed Ethernet Networks |
| All-Dielectric Construction | Contains No Metallic Components for Lightning Immunity and Electrical Isolation |
| Water Blocking | Filled with Waterproof Compound and E-Glass Yarn to Prevent Moisture Penetration |
| Flame Retardant Jacket | FR-LSZH Sheath Minimizes Smoke and Toxic Gas During Fire |
| High-Speed Network Support | Supports High-Bandwidth Enterprise, Data Center and Campus Backbone Applications |
| GENERAL | |
|---|---|
| Fiber Count | 12 Core |
| Cable Diameter | 7.7 ± 0.5mm |
| Cable Weight | 60 ± 5kg/km |
| Maximum Tensile Load | 1,800N (Installation), 900N (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 4,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC4312 is a 12-core OM3 50/125μm multimode fiber optic cable designed for indoor and outdoor installations. It features an all-dielectric single loose tube construction, UV-resistant PE jacket with FR-LSZH outer sheath, and water-blocking E-glass yarn for enhanced durability. The cable complies with ANSI/TIA, ISO/IEC, IEC and ITU-T G.651.1 standards, making it suitable for campus backbone, building backbone, FTTx, CCTV, data center and enterprise networking applications.
Important: The LINK UFC4312 is a 12-core OM3 (50/125μm) multimode fiber optic cable featuring all-dielectric construction, FR-LSZH flame-retardant jacket, UV-resistant PE outer sheath, waterproof loose tube design, and support for duct and aerial installation. It is optimized for 10G, 40G and 100G Ethernet applications and is ideal for backbone links, inter-building connections, FTTx, CCTV, and enterprise fiber optic infrastructure.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
