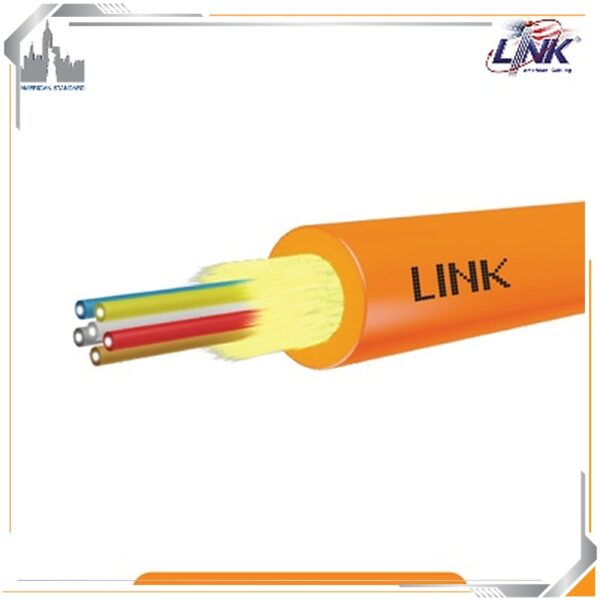

6 Core OS2 Distribution LSZH Fiber Optic Cable

  • 6 Core OS2 9/125μm Singlemode fiber optic cable
  • Distribution cable design with 900μm tight buffer structure
  • LSZH-FR jacket provides low smoke and flame-retardant protection
  • All-dielectric construction with aramid yarn strength member
  • Suitable for indoor backbone, FTTx, CCTV and fiber communication networks
  • Complies with ANSI/TIA-568.3-E, IEC 60794, ITU-T G.652.D and RoHS standards
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9206LSZH

Features Description
Device Type Indoor Distribution Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 6 Core
Cable Construction Indoor Distribution Tight Buffer Fiber Cable
Jacket Material LSZH-FR (Low Smoke Zero Halogen Flame Retardant)
Jacket Color Yellow
Application Indoor Backbone, Building Backbone, Fiber Distribution, Patch Cord and Communication Network
Cable Length 2,000 Meters per Roll
Installation Indoor Fiber Optic Cabling System
Fiber Standard ITU-T G.652D OS2 Single-Mode Fiber
Fiber Diameter 9/125μm
Fiber Type Single-Mode Fiber (SMF)
Cable Structure Distribution Tight Buffer Fiber Cable
Fiber Buffer 900μm Tight Buffered Optical Fiber
Strength Member Aramid Yarn
Jacket Material Flame Retardant LSZH
Installation Type Indoor Installation
Standards ANSI/TIA-568.3-D, ISO/IEC 11801, ITU-T G.652D, IEC 60332, IEC 60754, IEC 61034, RoHS
SMART FEATURES
LSZH-FR Jacket Provides Flame Retardant Protection and Reduces Smoke and Halogen Gas Emission During Fire Conditions
Distribution Cable Design Supports Multiple Fiber Connections for Indoor Backbone and Structured Cabling Systems
Tight Buffer Fiber Allows Easy Stripping, Termination and Direct Connector Installation
Aramid Strength Member Improves Tensile Strength and Provides Mechanical Protection
Single-Mode OS2 Fiber Supports High-Speed Long-Distance Optical Transmission
GENERAL
Fiber Count 6 Core
Cable Type F.O. Distribution Indoor Cable
Fiber Mode Single-Mode OS2
Outer Jacket Color Yellow
Tensile Strength 600 N (Installation) / 300 N (Operation)
Crush Resistance 500 N/100mm
Minimum Bend Radius 15 × Cable Diameter (Installation) / 10 × Cable Diameter (Operation)
Operating Temperature -20°C to +70°C
Packing 2,000m per Roll
Warranty 30 Years

Note: The LINK UFC9206LSZH is a 6-core OS2 9/125μm Single-Mode Indoor Distribution Fiber Optic Cable featuring an LSZH-FR flame-retardant jacket. It uses 900μm tight-buffered optical fibers surrounded by aramid strength members, providing easy termination, reliable indoor installation, and improved safety for building backbone and structured cabling applications.

Important: The LINK UFC9206LSZH is designed for indoor use such as campus backbone (inter-building), building backbone (intra-building), fiber distribution, FTTx, CCTV, CATV, Fiber Channel, and high-speed Ethernet networks. The LSZH-FR jacket helps reduce smoke and corrosive gas emissions, making it suitable for areas requiring enhanced fire safety.
