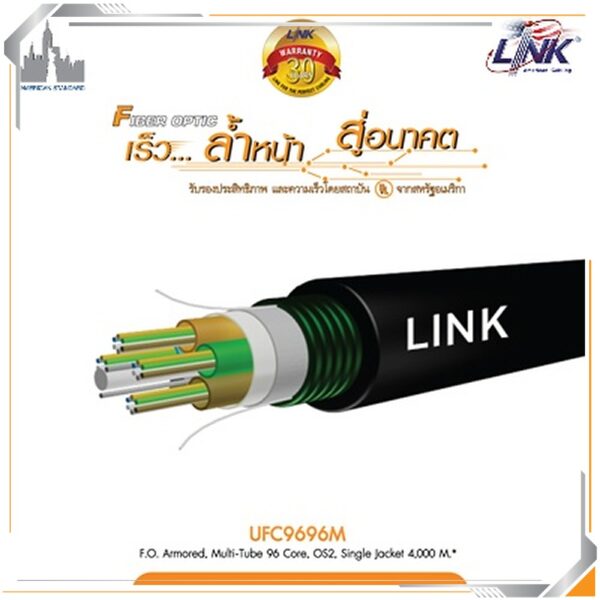

96 Core OS2 Armored Multi-Tube Outdoor Fiber Optic Cable

  • 96 Core OS2 9/125μm Singlemode armored multi-tube fiber optic cable
  • Outdoor armored design with steel protection and UV-resistant HDPE outer jacket
  • Supports duct, aerial and direct burial installations
  • Multi-Tube construction for high-density fiber deployment with large core capacity
  • Complies with ANSI/TIA-568.3, IEC 60794, ISO/IEC 11801 and ITU-T G.652D standards
  • Supports 10G, 40G, 100G, 200G and 400G Ethernet, FTTx, CATV and backbone network applications
  • Ideal for data centers, campus backbone, inter-building and long-distance enterprise fiber networks
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9696M

Features Description
Device Type Outdoor / Indoor Armored Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 96 Core
Cable Construction Steel Armored, Multi-Tube, Single Jacket
Jacket Material UV-Resistant Black HDPE Outer Jacket
Installation Indoor / Outdoor, Duct, Aerial and Direct Burial
Armored Protection Corrugated Steel Tape for Rodent and Mechanical Protection
Water Protection Water-Blocking Yarn, Tape and Jelly-Filled Loose Tube Construction
Cable Length 4,000 Meters per Drum (Available by Meter)
Application Large Backbone Network, Data Center, FTTx, Campus Network, CCTV and Enterprise Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Armor Type Corrugated Steel Tape
Jacket Type Single Jacket, UV-Resistant HDPE
Installation Type Indoor / Outdoor, Duct, Aerial and Direct Burial
Standards ANSI/TIA-568.3-E, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, EN 50173-1, TIS 2165, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CATV, CCTV, FTTx and Long-Distance Backbone
SMART FEATURES
High Fiber Density 96 Fiber Cores in a Single Cable for Large-Scale Network Backbone Deployment
Multi-Tube Design SZ-Stranded Loose Tube Construction Provides Excellent Fiber Protection and Easy Cable Management
Steel Armored Protection Corrugated Steel Tape Provides Protection Against Rodents, Impact and Mechanical Damage
Water Blocking Jelly-Filled Loose Tube with Water-Blocking Materials Prevents Moisture Penetration
Direct Burial Support Designed for Underground Installation Without Additional Conduit
GENERAL
Fiber Count 96 Core
Cable Diameter Approximately 15.0mm
Cable Weight Approximately 125kg/km
Maximum Tensile Load Suitable for Heavy-Duty Outdoor Backbone Installation
Installation / Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +75°C
Packing 4,000m per Drum (Available by Meter)
Warranty 30 Years

Note: The LINK UFC9696M is a 96-core OS2 9/125μm single-mode armored multi-tube fiber optic cable designed for high-capacity backbone networks. It features corrugated steel tape armor, SZ-stranded loose tube construction, water-blocking protection, UV-resistant HDPE outer jacket, and direct burial capability. It is suitable for large-scale enterprise networks, data centers, campus backbone, inter-building links, FTTx and CCTV infrastructure.

Important: The LINK UFC9696M is a 96-core OS2 armored multi-tube fiber optic cable featuring ITU-T G.652D single-mode fiber, steel armored protection, single jacket design, and support for indoor/outdoor as well as direct burial installation. It is optimized for large backbone networks requiring high fiber capacity, long-distance transmission, and reliable protection in harsh environments.
