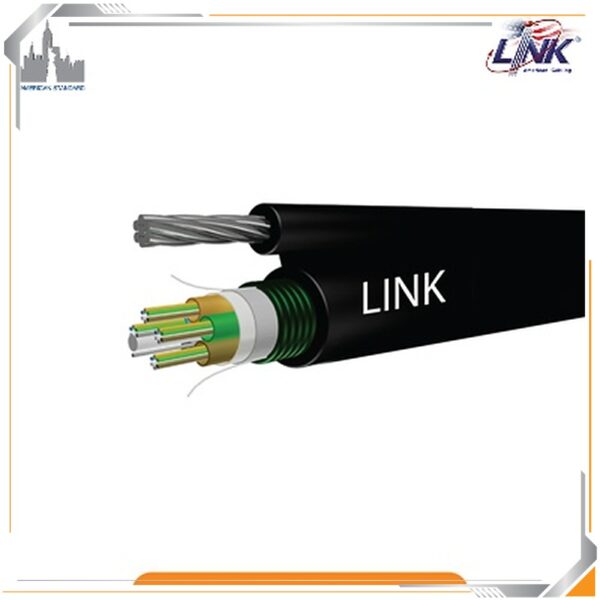

24 Core OS2 Armored Multi-Tube Figure 8 Fiber Optic Cable (Single Jacket)

  • 24 Core OS2 9/125μm Singlemode fiber optic cable with Multi-Tube Figure 8 design
  • Steel Armored construction with stranded drop wire for self-supporting aerial installation
  • Single Jacket HDPE outer sheath with UV resistance for outdoor environments
  • Supports aerial installation on poles, buildings and inter-building connections
  • Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
  • Ideal for FTTx, backbone networks, CCTV and long-distance fiber optic links
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK UFC9824MA

Features Description
Device Type F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable
Fiber Type OS2 9/125μm Single-Mode Fiber
Core Count 24 Core
Cable Construction Figure-8 (FIG.8), Multi-Tube, Steel Armored, Single Jacket
Jacket Material High Density Polyethylene (HDPE) Outer Jacket
Installation Aerial Pole Installation, Direct Burial and Duct Installation
Armored Protection Corrugated Steel Tape Armor for Anti-Rodent and Mechanical Protection
Messenger Wire Built-in Stranded Steel Messenger Wire for Self-Support Installation
Cable Length 4,000 Meters per Drum
Application Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure
Fiber Standard ITU-T G.652D OS2 Single-Mode
Fiber Diameter 9/125μm
Fiber Type Single-Mode Fiber (SMF)
Cable Structure FIG.8 Multi-Tube Armored
Armor Type Corrugated Steel Tape Armor
Jacket Type Single HDPE Jacket
Installation Type Aerial, Direct Burial and Underground Duct Installation
Standards ANSI/TIA-568.3-E, ANSI/TIA-568.3-D, ANSI/ICEA 640, Telcordia GR-20-CORE, ITU-T G.652D, ISO/IEC 11801, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2166, RoHS
Application 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network
SMART FEATURES
FIG.8 Self Support Design Integrated Messenger Wire Allows Easy Aerial Installation Without Additional Support Cable
Multi-Tube Structure Color-Coded Loose Tubes Protect Fiber Core and Allow High Fiber Density Installation
Steel Armored Protection Provides Anti-Rodent Protection and Resistance Against Crushing and External Impact
Water Blocking System Dry Water Blocking Tape and Yarn Prevent Moisture Penetration Into Cable Structure
High Fiber Capacity 24 Core Single-Mode Fiber Suitable for Backbone Network Expansion
GENERAL
Fiber Count 24 Core
Core / Cladding Size 9/125μm Single-Mode Fiber
Cable Type F.O. FIG.8 Multi-Tube Armored Single Jacket
Cable Diameter Approximately 14mm
Cable Weight Approximately 150kg/km
Tensile Strength Suitable for Outdoor Self-Support Installation
Installation / Operating Temperature -40°C to +70°C
Packing 4,000m per Drum
Warranty 30 Years

Note: The LINK UFC9824MA is a 24-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with a single HDPE jacket. The cable includes a built-in stranded steel messenger wire for self-support aerial installation and uses corrugated steel tape armor for anti-rodent and mechanical protection. It is suitable for aerial, direct burial, and duct installation in backbone networks, FTTx, CCTV, inter-building links, and enterprise fiber infrastructure.

Important: The LINK UFC9824MA is designed for outdoor fiber deployment requiring high durability and reliable long-distance transmission. Its FIG.8 structure combines messenger wire support and armored protection, making it suitable for pole installation while maintaining protection against rodents, moisture, and harsh environmental conditions.
