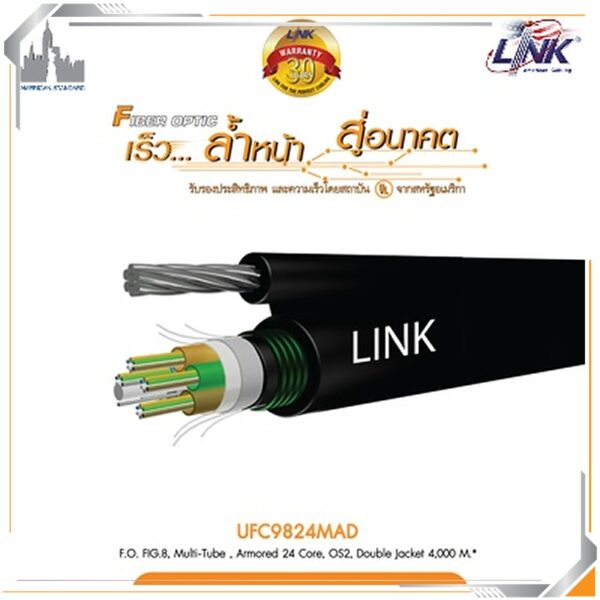

24 Core OS2 Armored Figure 8 Fiber Optic Cable (Double Jacket)
- 24 Core OS2 9/125μm Singlemode fiber cable
- Figure 8 armored design with stranded drop wire
- Double Jacket PE sheath with UV protection
- Supports self-supporting aerial installation
- Complies with ANSI/TIA-568.3, IEC 60794 and G.652D
- Ideal for FTTx, CCTV and backbone networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9824MAD
| Features | Description |
|---|---|
| Device Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable (Double Jacket) |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 24 Core |
| Cable Construction | FIG.8, Multi-Tube, Steel Armored, Double Jacket |
| Jacket Material | Double Layer UV-Resistant Black HDPE Outer Jacket |
| Installation | Outdoor Aerial Pole Installation, Building Entrance and Backbone Network |
| Armored Protection | Corrugated Steel Tape Armor Provides Anti-Rodent and Mechanical Protection |
| Messenger Wire | 7×1.0mm Galvanized Steel Messenger Wire for Self-Support Installation |
| Cable Length | 2,000 / 3,000 / 4,000 Meters per Drum |
| Application | Fiber Backbone, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure |
| Fiber Standard | ITU-T G.652D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Cable Structure | FIG.8 Multi-Tube Armored Double Jacket |
| Armor Type | Corrugated Steel Tape Armor |
| Jacket Type | Double HDPE Jacket |
| Messenger Wire | 7×1.0mm Galvanized Steel Wire |
| Installation Type | Aerial, Outdoor and Building Installation |
| Standards | ISO/IEC 11801, ANSI/TIA-568.3, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2165, RoHS |
| Application | 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network |
| SMART FEATURES | |
|---|---|
| FIG.8 Self Support Design | Integrated Messenger Wire Allows Aerial Installation Without Additional Support Cable |
| Multi-Tube Structure | Loose Tube Design Protects Fiber Core and Provides High Fiber Density Capability |
| Double Jacket Protection | Provides Improved Resistance Against UV, Weather Conditions and Mechanical Stress |
| Steel Armored Protection | Protects Fiber Core Against Rodents, Crushing and External Impact |
| High Fiber Capacity | 24 Core OS2 Single-Mode Fiber Suitable for Backbone Network Expansion |
| GENERAL | |
|---|---|
| Fiber Count | 24 Core |
| Core / Cladding Size | 9/125μm Single-Mode Fiber |
| Cable Type | F.O. FIG.8 Multi-Tube Armored Double Jacket |
| Outer Jacket Color | Black |
| Messenger Wire | 7×1.0mm Galvanized Steel Wire |
| Cable Length | 2,000 / 3,000 / 4,000m per Drum |
| Installation / Operating Temperature | -40°C to +70°C |
| Packing | 2,000 / 3,000 / 4,000m per Drum |
| Warranty | 30 Years |
Note: The LINK UFC9824MAD is a 24-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with a double HDPE jacket. It includes a 7×1.0mm galvanized steel messenger wire for self-support aerial installation and steel armor protection against rodents, impact, and harsh outdoor environments. The cable is suitable for backbone networks, FTTx, CCTV, inter-building connections, and enterprise fiber infrastructure.
Important: The LINK UFC9824MAD is designed for high-reliability outdoor fiber deployment with OS2 single-mode fiber, FIG.8 self-support structure, multi-tube design, armored protection, and double jacket construction. It supports long-distance 10G/40G/100G Ethernet transmission while providing enhanced durability for aerial installations.
