LINK UFC9848MA
LINK UFC9848MA

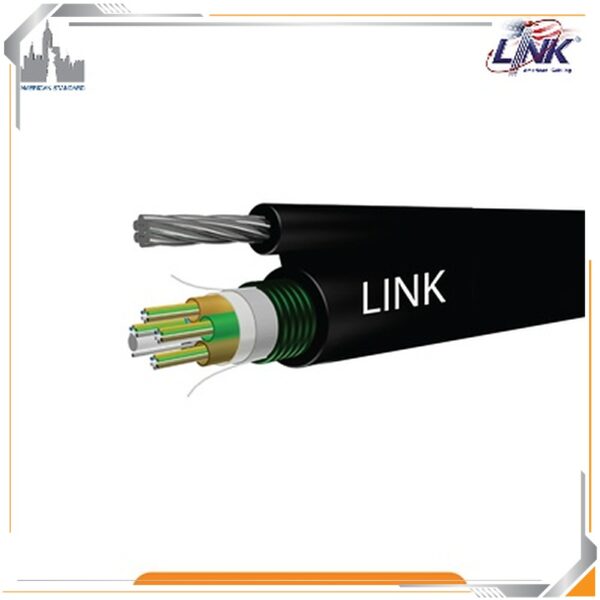

48 Core OS2 Armored Multi-Tube Figure 8 Fiber Optic Cable (Single Jacket)
- 48 Core OS2 9/125μm Singlemode fiber optic cable with Multi-Tube Figure 8 design
- Steel Armored construction with stranded drop wire for self-supporting aerial installation
- Single Jacket HDPE outer sheath with UV resistance for outdoor environments
- Supports aerial installation on poles, buildings and inter-building connections
- Complies with ANSI/TIA-568.3, IEC 60794 and ITU-T G.652D standards
- Ideal for FTTx, backbone networks, CCTV and long-distance fiber optic links
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK UFC9848MA
| Features | Description |
|---|---|
| Device Type | F.O. FIG.8 Multi-Tube Armored Fiber Optic Cable |
| Fiber Type | OS2 9/125μm Single-Mode Fiber |
| Core Count | 48 Core |
| Cable Construction | FIG.8, Multi-Tube, Armored, Single Jacket |
| Jacket Material | UV-Resistant Black HDPE Outer Jacket |
| Installation | Outdoor Aerial Pole Installation, Building Entrance and Backbone Network |
| Armored Protection | Steel Armored Layer Provides Protection Against Rodents, Impact and Mechanical Damage |
| Messenger Wire | 7×1.0mm Galvanized Steel Messenger Wire for Self-Support Installation |
| Cable Length | 4,000 Meters per Drum |
| Application | Backbone Network, Data Center, FTTx, CCTV, Inter-Building Link and Enterprise Fiber Infrastructure |
| Fiber Standard | ITU-T G.652D OS2 Single-Mode |
|---|---|
| Fiber Diameter | 9/125μm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Cable Structure | FIG.8 Multi-Tube Armored |
| Armor Type | Steel Armored |
| Jacket Type | Single HDPE Jacket |
| Messenger Wire | 7×1.0mm Galvanized Steel Wire |
| Installation Type | Aerial, Outdoor and Building Installation |
| Standards | ISO/IEC 11801, ANSI/TIA-568.3, Telcordia GR-20-CORE, ANSI/ICEA 640, ITU-T G.652D, IEC 60793, IEC 60794-1-2, EN 50173-1, TIS 2165, RoHS |
| Application | 10G, 40G, 100G Ethernet, Fiber Channel, CCTV, FTTx and Long-Distance Backbone Network |
| SMART FEATURES | |
|---|---|
| FIG.8 Self Support Design | Integrated Messenger Wire Allows Aerial Installation Without Additional Support Cable |
| Multi-Tube Structure | Loose Tube Design Protects Fiber Core and Supports High Fiber Density Applications |
| Steel Armored Protection | Provides Anti-Rodent Protection and Resistance Against Crushing and External Impact |
| OS2 Single-Mode Fiber | Supports Long-Distance High-Speed Transmission with Low Signal Loss |
| High Fiber Capacity | 48 Core Fiber Design for Large-Scale Backbone Network Expansion |
| GENERAL | |
|---|---|
| Fiber Count | 48 Core |
| Core / Cladding Size | 9/125μm Single-Mode Fiber |
| Cable Type | F.O. FIG.8 Multi-Tube Armored Single Jacket |
| Outer Jacket Color | Black |
| Cable Weight | Approximately 250kg/km |
| Messenger Wire | 7×1.0mm Galvanized Steel Wire |
| Installation / Operating Temperature | -40°C to +70°C |
| Packing | 4,000m per Drum |
| Warranty | 30 Years |
Note: The LINK UFC9848MA is a 48-core OS2 9/125μm single-mode fiber optic cable featuring FIG.8 multi-tube armored construction with a single HDPE jacket. It includes a built-in galvanized steel messenger wire and steel armored protection to provide high tensile strength, anti-rodent protection, and reliable outdoor installation. The cable is suitable for aerial pole installation, backbone networks, FTTx, CCTV, inter-building connections, and enterprise fiber infrastructure.
Important: The LINK UFC9848MA is designed for high-capacity outdoor fiber deployment with 48-core OS2 single-mode fiber, FIG.8 self-support structure, multi-tube design, and armored protection. It supports long-distance transmission for 10G/40G/100G Ethernet backbone networks while maintaining durability in outdoor environments.
