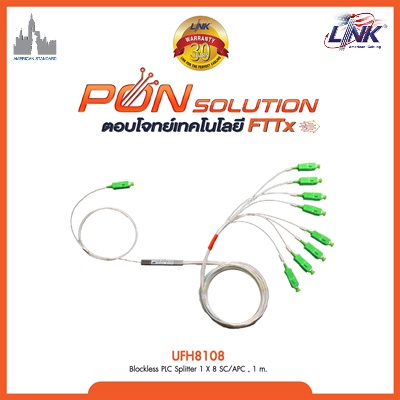

Specifications LINK UFH8108
| Features | Description |
|---|---|
| Product Type | PLC Double-Q Splitter Module |
| Split Ratio | 1 × 8 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode Fiber |
| Fiber Length | 1 m |
| Module Type | Blockless PLC Splitter |
| Design | Passive Optical Splitter with High Reliability and Stability |
| Application | Description |
|---|---|
| FTTH Network | Designed for Fiber to the Home (FTTH) optical distribution networks. |
| PON Network | Suitable for EPON, BPON and GPON passive optical network applications. |
| CATV Network | Suitable for fiber optic CATV signal distribution systems. |
| Telecommunications | Used for passive optical signal splitting in telecommunications networks. |
| Fiber Distribution | Suitable for optical signal distribution and access network applications. |
Note: The LINK UFH8108 is a 1 × 8 Blockless PLC Splitter with SC/APC connectors and 1 m fiber length.
Important: The UFH8108 is a passive optical splitter designed for FTTH, PON and CATV networks, providing reliable optical signal distribution.
