Specifications LINK UL-6558
| Features | Description |
|---|---|
| Product Type | Telephone Floor Mount Cabinet |
| Model | UL-6558 |
| BMF Capacity | 8 × 55 Positions |
| Telephone Capacity | 4,000–4,400 Pairs |
| Door | 4 Doors |
| Dimensions (H × W × D) | 190 × 214 × 40 cm |
| Mounting Type | Floor Mount |
| Application | Description |
|---|---|
| System | Telephone Distribution System |
| Application | Main Distribution Frame (MDF) and Telephone Distribution |
| Installation | Floor-mounted installation in telephone distribution and communication rooms |
| Compatible Equipment | LINK 55-Position Back Mount Frame (BMF) and Telephone Modules |

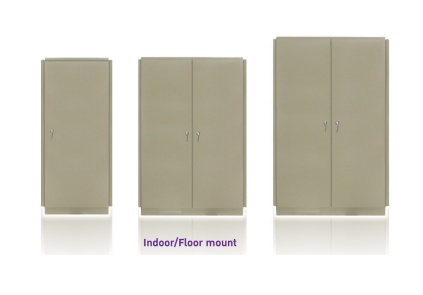

Note: The LINK UL-6558 is a Telephone Floor Mount Cabinet designed to accommodate 8 sets of 55-position BMF for high-capacity telephone distribution systems. The cabinet features 4 doors and measures 190 × 214 × 40 cm.
Important: The Back Mount Frames (BMF) and telephone modules are installed separately. The UL-6558 is designed for high-capacity indoor telephone distribution and Main Distribution Frame (MDF) applications.
