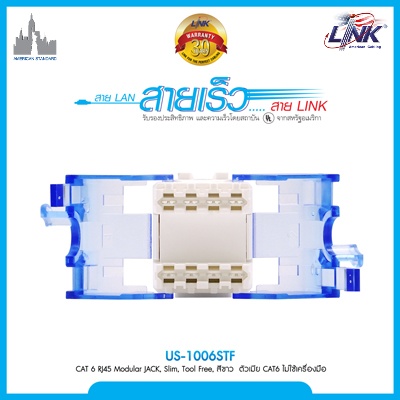

Specifications LINK US-1006STF
| Features | Description |
|---|---|
| Product Type | CAT 6 RJ45 Modular Jack |
| Type | Unshielded, Slim, Tool Free |
| Category | CAT 6 |
| Wiring | T568A / T568B Universal |
| Wire Size | 26–22 AWG Solid & Stranded |
| Contact Material | Phosphor Bronze with Over 50 Micro-Inches Gold Plating |
| Termination | 180° IDC, Tool Free |
| Housing | High Impact Flame Retardant ABS, UL94V-0 |
| Color | White |
| Durability | 800 Mating Cycles / 200 Re-Termination Cycles |
| Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 Class D, EN 50173-1, Lead-Free & RoHS |
| Application | Description |
|---|---|
| Network Cabling | Suitable for CAT 6 UTP structured cabling systems. |
| Gigabit Ethernet | Supports 10/100/1000BASE-T Ethernet applications. |
| Multi-Gigabit Network | Supports 2.5G/5G and 10GBASE-T applications. |
| PoE | Supports PoE, PoE+ and 4PPoE applications. |
| Outlet Installation | Suitable for face plates, outlet boxes and network infrastructure. |
Note: The LINK US-1006STF is a CAT 6 RJ45 Modular Jack with a slim design and Tool Free termination, suitable for UTP CAT 6 cabling.
Important: The US-1006STF supports 26–22 AWG solid and stranded wire and features 180° IDC Tool Free termination for easy installation.
