Specifications LINK US-1044TF
| Features | Description |
|---|---|
| Product Type | CAT 8 RJ45 Modular Jack |
| Category | Category 8 |
| Connector Type | RJ45 Modular Jack, Shielded |
| Termination Type | Tool Free |
| Standard | ANSI/TIA-568-C.2-1 Category 8, ISO/IEC TR 11801-99-1, IEC 60603-7-5, EN 50173-1 |
| Wiring Pattern | T568A / T568B Universal Color Pattern |
| Housing | Zinc Die-Casting with Nickel Plating |
| Jack Contact | Phosphor Bronze with 50 Micro-Inches Gold Plating |
| IDC Contact | Phosphor Bronze with 150 Micro-Inches Tin Plating |
| IDC Block | Polycarbonate + Glass Fiber, UL 94V-0 |
| Accept Wire Size | 22–24 AWG Solid & Stranded Wire |
| Durability | 750 Mating Cycles / 200 Termination Cycles |
| PoE Support | PoE, PoE+ and PoE Type 4 |
| Compliance | Lead-Free & RoHS Compliant |
| Application | Description |
|---|---|
| CAT 8 Network | Designed for high-performance Category 8 structured cabling systems. |
| Data Center | Suitable for high-speed network and data center infrastructure. |
| Patch Panel | Designed for installation in compatible patch panels and modular outlets. |
| PoE System | Supports PoE, PoE+ and PoE Type 4 powered network devices. |

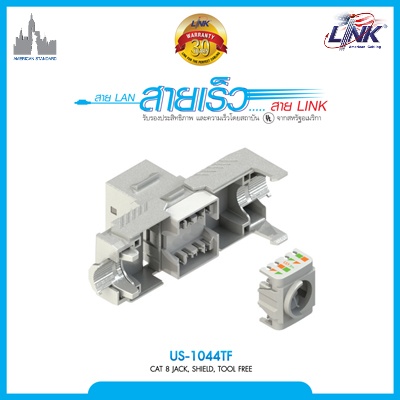

Note: The LINK US-1044TF is a Category 8 Shielded RJ45 Modular Jack featuring Tool Free termination, zinc die-cast housing and support for high-speed network applications.
Important: The US-1044TF supports T568A/T568B wiring, 22–24 AWG solid and stranded wire, and is suitable for CAT 8 structured cabling and PoE applications.
