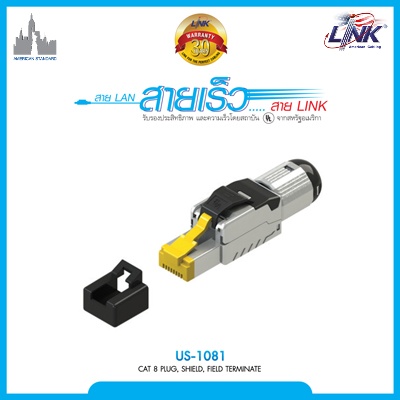

Specifications LINK US-1081
| Features | Description |
|---|---|
| Product Type | CAT 8 RJ45 Modular Plug |
| Category | Category 8 |
| Connector Type | RJ45 Plug, Shielded |
| Termination Type | Field Terminate |
| Standard | ANSI/TIA-568-C.2-1 Category 8, ISO/IEC TR 11801-99-1, IEC 60603-7-5, EN 50173-1 |
| Wiring Pattern | T568A / T568B |
| Housing | Zinc Die-Casting with Nickel Plating |
| IDC Contact | Phosphor Bronze with Tin Plating |
| Contacts | Phosphor Bronze with Gold Plating |
| Wire Management Bar | Polycarbonate, UL 94V-0 |
| Dust Cap | Polyethylene, Black |
| Accept Wire Size | 22–24 AWG Solid & Stranded Wire |
| Position | 8 Position |
| Compliance | RoHS Compliant |
| Application | Description |
|---|---|
| CAT 8 Network | Designed for high-performance Category 8 structured cabling systems. |
| High-Speed Network | Supports high-speed Ethernet applications including 25G/40G BASE-T and 10G BASE-T. |
| Data Center | Suitable for high-performance network and data center infrastructure. |
| PoE System | Suitable for PoE and other powered network applications. |
Note: The LINK US-1081 is a Category 8 Shielded RJ45 Modular Plug designed for field termination, featuring a zinc die-cast housing with nickel plating for high-performance network cabling.
Important: The US-1081 supports T568A/T568B wiring and 22–24 AWG solid and stranded conductors, making it suitable for CAT 8 high-speed network and PoE applications.
