LINK US-3224SL

LINK US-3224SL

LINK US-3224SL

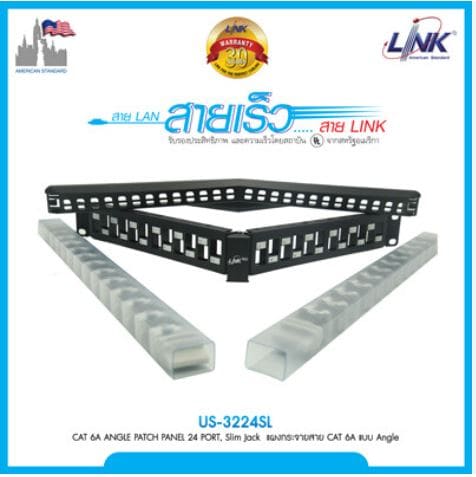

CAT6A Angle Patch Panel 24 Port, Slim Jack

  • 24-port CAT6A angle patch panel with Slim Jack design
  • Unshielded CAT6A connectors for high-speed network connections
  • Supports up to 10Gbps Ethernet for reliable data transmission
  • 1U rack-mount design for standard 19-inch cabinets
  • Lightweight aluminum frame with rear cable management support
  • Compatible with LINK CAT6A Slim modular jacks
หมวดหมู่: , , ป้ายกำกับ:

Specifications LINK US-3224SL

Features Description
Product Type CAT 6A Angle Patch Panel
Port Capacity 24 Port
Category CAT 6A
Type Angle Unshield
Connector CAT 6A Slim RJ45 Modular Jack
Standard ANSI/TIA-568.2-D Category 6A, ISO/IEC-11801 Class EA, EN50173-1 and IEEE 802.3an
Wiring Pattern T568B / T568A Universal Color Pattern
Termination Dual Type 110 IDC or KRONE
Wire Size 26–22 AWG Solid & Stranded Wire
Rack Mount 19-inch Rack, 1U
Durability 1,000 Mating Cycles / 200 Re-termination Cycles
Approval UL Listed E196947, Intertek Channel Test, Lead-Free & RoHS Compliant
Application Description
10G Ethernet Supports 10GBASE-T and high-speed Ethernet applications.
Network Cabling Supports 10/100/1000BASE-T, 2.5G/5G and CAT 6A structured cabling.
PoE Supports PoE and PoE+ applications.
Rack Installation Designed for 19-inch rack installation with an angled port layout.

Note: The LINK US-3224SL is a 24-Port CAT 6A Angle Patch Panel with Slim RJ45 Modular Jacks and an unshielded design. It uses a 1U rack-mount format.

Important: The US-3224SL supports 10GBASE-T, 2.5G/5G and PoE/PoE+ applications. The angled design helps organize patch cords and improve cable management in network racks.

Datasheet
