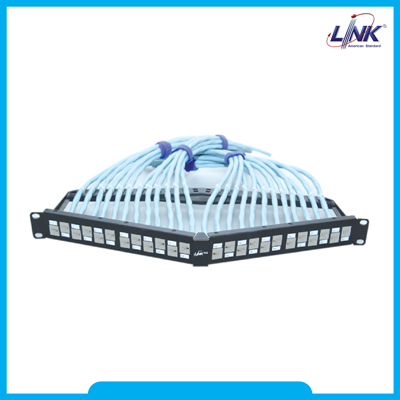

Specifications LINK US-3224TFAS
| Features | Description |
|---|---|
| Product Type | CAT 6A Angle Patch Panel with Cable Management |
| Port Capacity | 24 Port |
| Category | CAT 6A |
| Type | Unshielded, Angle |
| Termination | Tool-Free |
| Shutter | Automatic Shutter |
| Wiring Pattern | T568B / T568A Universal Color Pattern |
| Rack Mount | 1U, 19-inch Rack |
| Wire Size | 26–22 AWG Solid & Stranded Wire |
| Durability | 1,000 Mating Cycles / 200 Re-termination Cycles |
| Approval | UL Listed E196947, Intertek Channel Test, Lead-Free & RoHS Compliant |
| Application | Description |
|---|---|
| 10G Ethernet | Supports 10GBASE-T and high-speed Ethernet applications. |
| Network Cabling | Supports 10/100/1000BASE-T, 2.5G/5G and CAT 6A structured cabling. |
| PoE | Supports PoE, PoE+ and 4PPoE applications. |
| Rack Installation | Designed for 19-inch rack installation with integrated cable management. |
Note: The LINK US-3224TFAS is a 24-Port CAT 6A Angle Patch Panel with Tool-Free termination and an Automatic Shutter. It features an unshielded design and integrated cable management.
Important: The US-3224TFAS supports 10GBASE-T, 2.5G/5G, PoE/PoE+ and is designed for 1U 19-inch rack installation. The patch panel uses CAT 6A RJ45 modular jacks and supports 26–22 AWG solid and stranded wires.
