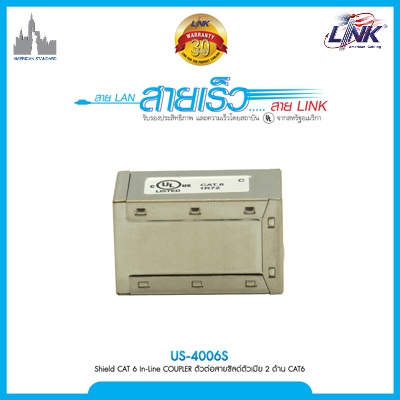

Specifications LINK US-4006S
| Features | Description |
|---|---|
| Product Type | Shielded CAT 6 In-Line Coupler |
| Connector Type | RJ45 Jack to RJ45 Jack |
| Category | CAT 6 |
| Type | Shielded |
| Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class D, EN50173-1 |
| Dimensions | 36 × 17.8 × 22 mm |
| Color | Metallic |
| Contact Material | Phosphor Bronze with over 50 micro-inch Gold Plating |
| Housing | High Impact Flame Retardant Plastic |
| Compliance | Lead-Free & RoHS Compliant |
| Application | Description |
|---|---|
| Network Extension | Connects two RJ45 network cables to extend cable length. |
| Gigabit Ethernet | Supports 10/100/1000BASE-T network applications. |
| 10G Ethernet | Supports 10GBASE-T high-speed Ethernet applications. |
| PoE | Supports PoE, PoE+ and 4PPoE applications. |
| Shielded Network | Suitable for shielded network cabling to help reduce interference. |
Note: The LINK US-4006S is a Shielded CAT 6 In-Line Coupler with RJ45 jack-to-jack connection and metallic shielding.
Important: The US-4006S is designed for CAT 6 shielded network cabling and is recommended for extending or repairing RJ45 Ethernet cable connections.
