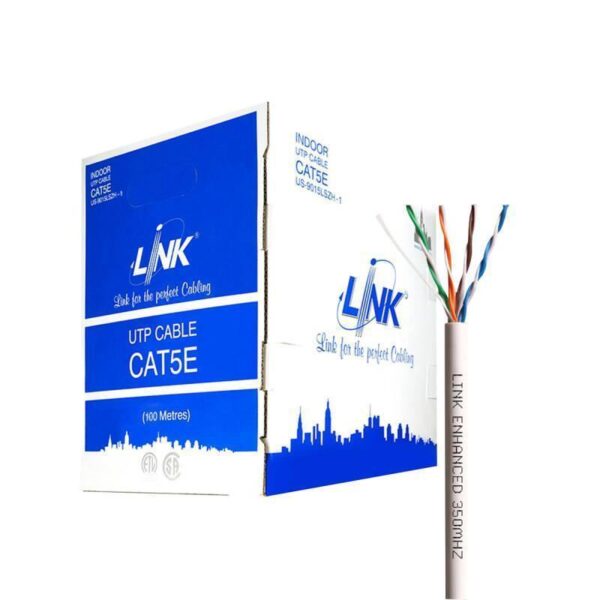

Specifications LINK US-9015LSZH-1
| Features | Specifications |
|---|---|
General |
|
| Product Type | CAT5e U/UTP Enhanced LAN Cable |
| Model | US-9015LSZH-1 |
| Category | Category 5e |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Application | Indoor Installation |
| Cable Length | 100 m / Box |
| Color | White |
Performance |
|
| Bandwidth | 350 MHz |
| Data Transmission | 10/100/1000 Mbps Ethernet |
| PoE Support | IEEE 802.3af PoE and IEEE 802.3at PoE+ |
| Impedance | 100 Ω |
| Number of Pairs | 4 Pairs / 8 Conductors |
Construction |
|
| Conductor | 24 AWG Solid Bare Copper |
| Conductor Type | Solid Copper |
| Insulation | HDPE |
| Jacket Material | LSZH |
| Jacket Type | Low Smoke Zero Halogen |
| Outer Diameter | Approx. 5.3 mm |
Safety & Environmental |
|
| Fire Safety | Low Smoke and Low Toxic Gas Emission |
| Flame Retardant | IEC 60332-1 |
| LSZH Compliance | IEC 60754-1, IEC 60754-2, IEC 61034-1 and IEC 61034-2 |
| Environmental Compliance | RoHS Compliant |
Standards & Compliance |
|
| ANSI/TIA Standard | ANSI/TIA-568.2-E Category 5e |
| ISO/IEC Standard | ISO/IEC 11801:2017 Class D |
| European Standard | EN 50173-1 Category 5e |
| Cable Standard | EN 50288-3-1 and IEC 61156-5 |
| Verification | 3P Verified to Category 5e |
| Additional Compliance | UL 444, CSA 22.2 No.214, NEMA WC 63.1 and RoHS |
Applications |
|
| Network Applications | 10/100/1000 Mbps Ethernet Networks |
| CCTV Applications | IP Cameras and Network Video Surveillance Systems |
| Wireless Applications | Wireless Access Points and Network Devices |
| Telephone Applications | Voice and Telephone Systems |
| Structured Cabling | Indoor Network Infrastructure and Building Cabling |
Packaging |
|
| Package Type | Color Box / Pull Box |
| Package Length | 100 m |
| Connector | None |
| Power Wire | None |
| Sling | None |
Note: The LINK US-9015LSZH-1 is a Category 5e U/UTP Enhanced LAN cable designed for indoor structured cabling installations. It provides 350 MHz bandwidth and supports 10/100/1000 Mbps Gigabit Ethernet networking. The cable uses 24 AWG solid bare copper conductors with a 4-pair U/UTP construction and an LSZH outer jacket. The LSZH material helps reduce smoke and corrosive gas emissions in the event of fire, providing an additional safety feature for indoor installations. With a 100-meter box configuration, the cable is suitable for computer networks, CCTV systems, wireless access points, telephone systems and other structured network infrastructure.
