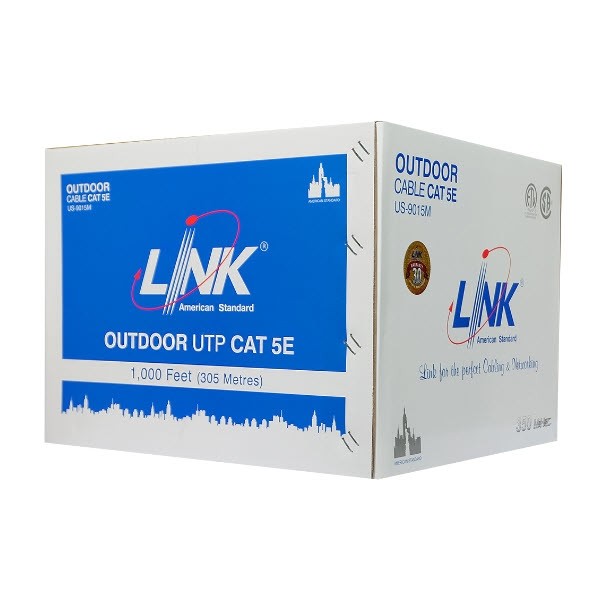

LINK US-9015M
LINK US-9015M
CAT5E UTP PE Outdoor Cable with Drop Wire (350MHz)
- CAT5E UTP cable with 4 pairs 24AWG solid bare copper conductor
- Supports bandwidth up to 350MHz for high-speed data transmission
- PE outer jacket with galvanized steel messenger wire for aerial installation
- Supports Gigabit Ethernet, PoE and PoE+ applications
- Suitable for outdoor LAN, CCTV and network cabling applications
- Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class D and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9015M
| Features | Description |
|---|---|
| Device Type | CAT5e U/UTP Outdoor LAN Cable with Drop Wire |
| Category | Category 5e (CAT5e) |
| Bandwidth | 350 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 24 AWG |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with Messenger Wire |
| Drop Wire | Galvanized Steel Messenger Wire 1.3 mm |
| Jacket Material | UV Resistant PE (Polyethylene) |
| Jacket Color | Black |
| Cable Length | 305 Meters / Reel in Box |
| Application | Outdoor LAN Cabling, CCTV, IP Camera, PoE, Building-to-Building Network and Aerial Installation |
| Cable Standard | ANSI/TIA-568.2-D Category 5e, ISO/IEC 11801 Class D |
|---|---|
| Category | CAT5e U/UTP Outdoor |
| Frequency | 350 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Messenger Wire | Galvanized Steel Wire Diameter 1.3 mm |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Diameter | 5.5 ± 0.2 mm (Cable) / 9.3 ± 0.2 mm (Including Drop Wire) |
| SMART FEATURES | |
|---|---|
| Outdoor Drop Wire Design | Built-In Messenger Wire Supports Aerial Installation Between Buildings or Poles Without Additional Support Cable |
| UV Resistant PE Jacket | Protects Cable Against Sunlight, Weather Conditions and Outdoor Installation Environment |
| CAT5e Enhanced Performance | Supports Gigabit Ethernet Transmission up to 1000 Mbps |
| PoE / PoE+ Support | Supports IEEE 802.3af and IEEE 802.3at Power over Ethernet Applications |
| Solid Copper Conductor | Provides Stable Signal Transmission and Low Signal Loss |
| GENERAL | |
|---|---|
| Cable Type | CAT5e U/UTP PE Outdoor Cable with Drop Wire |
| Impedance | 100 ± 15 Ohms |
| DC Resistance | ≤ 9.38 Ω/100m |
| Propagation Delay | ≤ 536 ns/100m @350MHz |
| Delay Skew | ≤ 25 ns/100m |
| NVP | 69% |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 1400 N |
| Ultimate Breaking Strength | >400 N |
| Installation Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173-1, EN 50288-3-1, ICEA S-90-661, NEMA WC 63.1, UL 444, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9015M is a CAT5e U/UTP outdoor LAN cable with built-in drop wire (messenger wire) designed for aerial installation. It features 24 AWG solid bare copper conductors, 350 MHz bandwidth, UV-resistant PE jacket, and supports Gigabit Ethernet, PoE/PoE+, CCTV, IP Camera, and outdoor network infrastructure applications.
Important: The LINK US-9015M is designed for outdoor installations such as cable runs between buildings, poles, and CCTV network systems. The integrated galvanized steel messenger wire provides mechanical support for suspended cable installation, while the PE jacket protects against sunlight and weather exposure.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
