| Features |
Description |
| Product Type |
CAT6A F/UTP SUPER XG Cable |
| Category |
Category 6A |
| Bandwidth |
Up to 650 MHz |
| Shielding |
F/UTP, Overall Shielded |
| Conductor |
23 AWG Solid Bare Copper |
| Number of Conductors |
4 Pairs (8 Wires) |
| Shield |
Al-Mylar Tape |
| Drain Wire |
24 AWG Tinned Annealed Copper |
| Cross Filler |
PE |
| Jacket |
Lead-Free FR-LSZH |
| Cable Diameter |
7.5 ± 0.2 mm |
| Color |
Aqua Blue |
| Length |
305 m / Roll |
| 10GBASE-T |
Supported |
| 2.5G/5GBASE-T |
Supported |
| PoE |
IEEE 802.3af / 802.3at / 802.3bt Supported |
| CABLE CONSTRUCTION |
| Conductor |
23 AWG Solid Bare Copper |
| Number of Pairs |
4 Pairs / 8 Wires |
| Insulation |
HDPE |
| Cross Filler |
PE |
| Shield |
Al-Mylar Tape, 0.065 mm |
| Drain Wire |
24 AWG Tinned Annealed Copper |
| Rip Cord |
Under Jacket |
| Jacket |
Lead-Free FR-LSZH |
| Cable Diameter |
7.5 ± 0.2 mm |
| Jacket Color |
Aqua Blue |
| ELECTRICAL CHARACTERISTICS |
| Impedance |
100 ± 5 Ohms, 1 MHz to 650 MHz |
| Mutual Capacitance |
≤ 5.6 nF Max. / 100 m |
| Capacitance Unbalance |
≤ 160 pF Max. / 100 m |
| DC Resistance |
≤ 6.658 Ohms Max. / 100 m |
| DC Resistance Unbalance |
3% Max. |
| Insulation Resistance |
≥ 5000 MΩ/km |
| Propagation Delay |
≤ 534 ns / 100 m Max. @ 650 MHz |
| Delay Skew |
≤ 25 ns Max. |
| NVP |
69% |
| MECHANICAL & ENVIRONMENTAL |
| Tensile Strength |
110 N (25 lbf) |
| Ultimate Breaking Strength |
> 400 N (90 lbf) |
| Minimum Bending Radius |
8 × Cable Diameter |
| Installation / Operating Temperature |
-20°C to +75°C |
| Storage Temperature |
-20°C to +80°C |
| Flame Rating |
LSZH (Low Smoke Zero Halogen) |
| STANDARDS & APPLICATION |
| ANSI/TIA |
ANSI/TIA-568.2-E Category 6A |
| ISO/IEC |
ISO/IEC 11801:2017 Class EA |
| EN Standard |
EN 50173-1 Category 6A |
| IEC Standard |
IEC 61156-5 Category 6A |
| Ethernet |
10/100/1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T |
| PoE |
IEEE 802.3af / 802.3at / 802.3bt |
| Compliance |
RoHS |

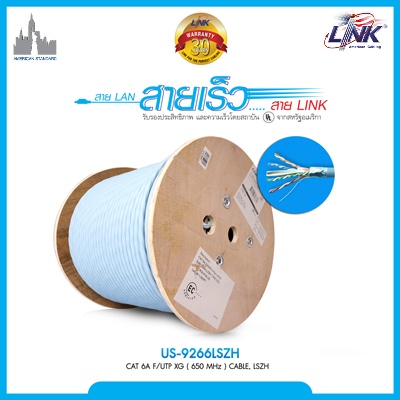

Note: The LINK US-9266LSZH is a CAT6A F/UTP SUPER XG cable featuring 23 AWG solid bare copper conductors, an Al-Mylar overall shield, PE cross filler, and a lead-free FR-LSZH jacket. It supports up to 650 MHz bandwidth, 10GBASE-T, 2.5GBASE-T, 5GBASE-T, and IEEE 802.3af/at/bt PoE applications.
