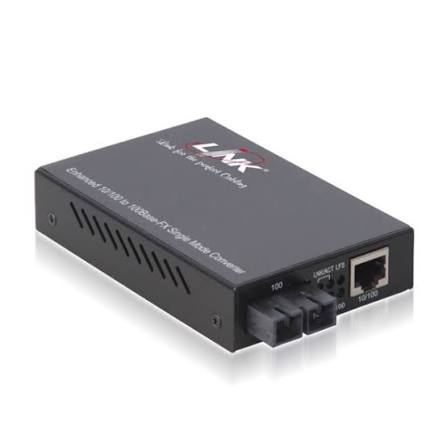

Specifications LINK UT-0216E-SM30
| Features | Specifications |
|---|---|
Product Overview |
|
| Product Type | 10/100 Enhance Fiber Optic Media Converter |
| Model | UT-0216E-SM30 |
| Fiber Type | Single-Mode Fiber (SM) |
| Fiber Connector | SC Duplex |
| Maximum Transmission Distance | Up to 30 km |
| Standards | IEEE 802.3 and IEEE 802.3u |
Network Interfaces |
|
| Copper Port | 1 x 10/100Base-TX RJ45 |
| Fiber Port | 1 x 100Base-FX SC Duplex |
| RJ45 Transmission Speed | 10/100 Mbps |
| Fiber Transmission Speed | 100 Mbps |
| Maximum Copper Cable Distance | Up to 100 meters |
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | IEEE 802.3x |
| VLAN Packet Transmission | IEEE 802.1Q |
| QoS Packet Transmission | IEEE 802.1p |
| STP Packet Transmission | IEEE 802.1d |
| Maximum Packet Size | Up to 9 KB |
Enhanced Features |
|
| DIP Switches | 7 DIP switches for manual configuration |
| Auto-Negotiation Control | Enable or disable auto-negotiation |
| Copper Duplex Mode | Full-duplex or half-duplex |
| Copper Speed Selection | 10 Mbps or 100 Mbps |
| Fiber Duplex Mode | Full-duplex or half-duplex |
| Link Fault Signaling (LFS) | Supported |
| Local Loopback (LLBK) | Supported |
| Remote Loopback (RLBK) | Supported |
| Chassis Compatibility | Compatible with LINK UT-3012 12-Slot Rack-Mount Converter Chassis |
| Installation | Plug-and-play |
Power Specifications |
|
| Power Input | 12V DC via DC Jack |
| Power Consumption | 2.8W |
| Power Adapter | 100–240V AC, 50–60Hz input; 12V DC/1A output |
LED Indicators |
|
| LED Indicators | PWR, 100, LFS, LNK/ACT and FDX/COL |
| Power Status | PWR LED |
| Network Status | Link, activity, speed and duplex indicators |
| Link Fault Signaling | LFS LED |
Mechanical and Environmental Specifications |
|
| Housing Material | Metal |
| Dimensions (W x H x D) | 73.8 x 23.4 x 109.2 mm |
| Weight | 150 g |
| Mounting | Desktop and Chassis Compatible |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
Certifications |
|
| EMI | FCC Part 15 Class A, CE Approved, EN 55022 Class A, EN 61000-3-2 and EN 61000-3-3 |
| EMS | EN 55024 and IEC/EN 61000-4 Series |
| Environmental Compliance | RoHS |
Note: The LINK UT-0216E-SM30 is a 10/100 Mbps enhanced fiber optic media converter designed to convert Ethernet signals between RJ45 copper cabling and single-mode fiber optic cabling. It supports transmission distances of up to 30 km.
Important: This model uses single-mode fiber with an SC duplex connector. Verify fiber compatibility, transmission distance and network configuration before installation.
