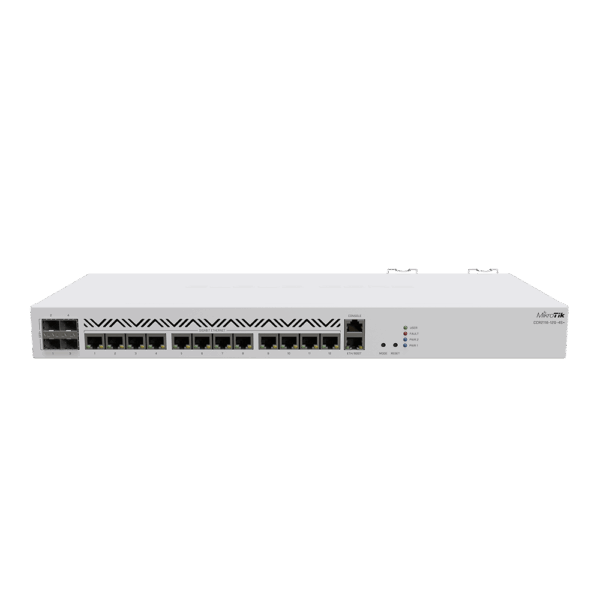

Specifications MikroTik CCR2116-12G-4S+

Features	Specifications
Product Type	Cloud Core Router
CPU	AL73400 2GHz
CPU Architecture	ARM 64-bit
CPU Core Count	16 Cores
CPU Threads	16
Switch Chip	Marvell 98DX3255
RAM	16GB DDR4
Storage	128MB NAND
Operating System	RouterOS v7
RouterOS License	Level 6
L3 Hardware Offloading	Supported

Network & Interfaces

Features	Specifications
Gigabit Ethernet Ports	13 × 10/100/1000 Ethernet
10G SFP+ Ports	4 × 10G SFP+
Switch Chip Connection	12 Gigabit Ethernet Ports + 4 SFP+ Ports
CPU-Connected Ethernet	1 × Gigabit Ethernet for Management
Console Port	1 × RJ45 Serial Console
M.2 Slot	1 × M.2 PCIe
M.2 Interface	PCIe Gen 3.0 x4

Performance & Routing

Features	Specifications
Bridging Performance	Up to 38.9Gbps
Routing Performance	Up to 39.0Gbps
L3 Hardware Routing	Up to 51.3Gbps
IPsec Performance	Up to 4.1Gbps
FastTrack	Supported
Routing Protocols	Static Routing, OSPF, BGP, RIP, IS-IS and More via RouterOS

Power & General

Features	Specifications
Power Inputs	2 × AC Inputs
AC Input Range	100–240VAC
Power Supply	Dual Redundant Power Supplies
Frequency	47–63Hz
Maximum Power Consumption	83W
Power Consumption Without Attachments	60W
Cooling	4 Fans
Mounting	Rackmount / Desktop
Dimensions	443 × 199 × 44mm
MTBF	Approximately 200,000 Hours at 25°C
Operating Temperature	-20°C to +60°C
Certifications	CE, EAC, RoHS

Note: The MikroTik CCR2116-12G-4S+ is a high-performance Cloud Core Router featuring a 16-core ARM64 CPU, 13× Gigabit Ethernet ports, 4×10G SFP+ ports, 16GB RAM and L3 hardware offloading.

Important: Performance figures are maximum test results under specific MikroTik test configurations. Actual throughput depends on packet size, routing configuration, firewall rules, queues and enabled services.
