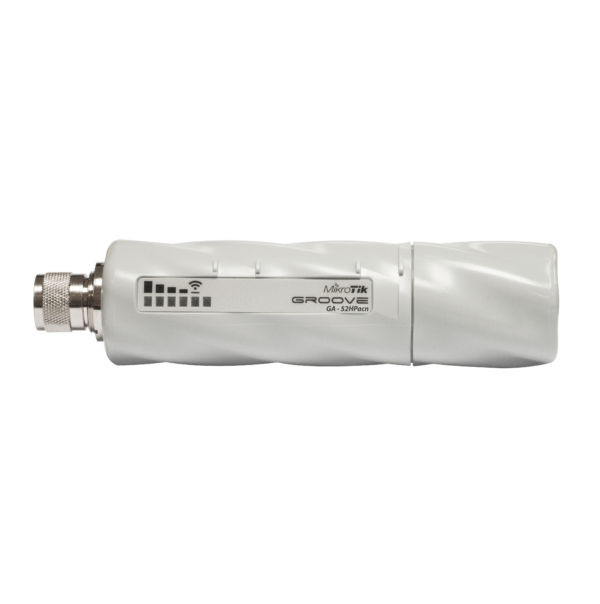

MikroTik RBGrooveGA-52HPacn (Groove 52 ac)

Mikrotik รุ่น RBGrooveGA-52HPacn (Groove 52 ac)

คุณสมบัติ

  • แอคเซสพอยต์ RBGrooveGA-52HPacn (Groove 52 ac) แบบภายนอกอาคาร
  • ความเร็ว 433 Mbps มาตรฐานไวไฟ 802.11b/g/n, 802.11a/n/ac มี 2 ความถี่ให้เลือกใช้ 2.4GHz และ 5GHz
  • กำลังส่ง 500mW ใช้ CPU QCA9556 720MHz หัวต่อแบบ N-Nale
  • 1 พอร์ตแลน 10/100/1000  Mbps
  • รองรับต่อเข้ากับเสาอากาศทั้ง 2 ความถี่ ให้ระยะการเชื่อมต่อไร้สายแบบจุดต่อจุด Point-to-point  (ใช้เสาแบบจาน Dish Antenna)
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications

Details
Product code RBGrooveGA-52HPacn
Architecture MIPSBE
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 177 x 44 x 44 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V

Wireless specifications

Details
Wireless 5 GHz/2.4 GHz Max data rate 433 Mbit/s
Wireless 5 GHz/2.4 GHz number of chains 1
Wireless 5 GHz/2.4 GHz standards 802.11b/g/n, 802.11a/n/ac
Antenna gain dBi for 5 GHz/2.4 GHz 6
Wireless 5 GHz/2.4 GHz chip model QCA9889
Wireless 5 GHz/2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP55

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 24 -97
11MBit/s 21 -91
6MBit/s 24 -93
54MBit/s 21 -77
MCS0 24 -93
MCS7 20 -72
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -93
54MBit/s 21 -78
MCS0 26 -93
MCS7 21 -74
MCS9 19 -69
