| Features |
Description |
| Product Type |
65-inch Smart Interactive Display |
| Panel Size |
65 inches |
| Backlight |
DLED |
| Resolution |
3840 × 2160 (4K UHD) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1200:1 |
| Response Time |
8 ms |
| Refresh Rate |
60 Hz |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Color Support |
1.07 Billion Colors |
| Color Gamut |
72% |
| Surface Hardness |
9H (7 Mohs) |
| Touch & System |
Description |
| Touch Technology |
Infrared Touch |
| Touch Control |
32-Point Touch / 20-Point Writing |
| Touch Precision |
1 mm |
| Touch Response Time |
≤5 ms |
| Recognizable Object |
5 Points, 3 mm |
| Glass |
4 mm Tempered Anti-Glare Glass |
| CPU |
Amlogic T982 Quad-Core A55 |
| CPU Frequency |
1.9 GHz |
| RAM / ROM |
4 GB DDR4 / 32 GB eMMC |
| Operating System |
Android 13.0 |
| Interface & Connectivity |
Description |
| Video Input |
2 × HDMI IN (4K@60), 2 × AV IN |
| Video Output |
1 × AV OUT |
| Audio Output |
1 × 3.5 mm Audio Out |
| USB |
1 × USB 3.0, 4 × USB 2.0, 1 × USB Type-C |
| Touch Output |
2 × TOUCH OUT |
| Network |
1 × RJ45 10/100 Mbps |
| Wireless |
Dual-Band Wi-Fi 5 |
| Bluetooth |
Bluetooth 5.0 |
| Control |
1 × RS232 |
| Other |
1 × SPDIF |
| Audio & General |
Description |
| Speaker |
2 × 15 W, 2.0 Channel |
| Wi-Fi Range |
Up to 20 m in Open Space |
| Power Supply |
AC 100–240 V, 50/60 Hz |
| Power Consumption |
185 W |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Dimension |
1500.6 × 886.8 × 115.7 mm |
| Weight |
36 kg Net / 47 kg Gross |
| VESA Mount |
500 × 400 mm |

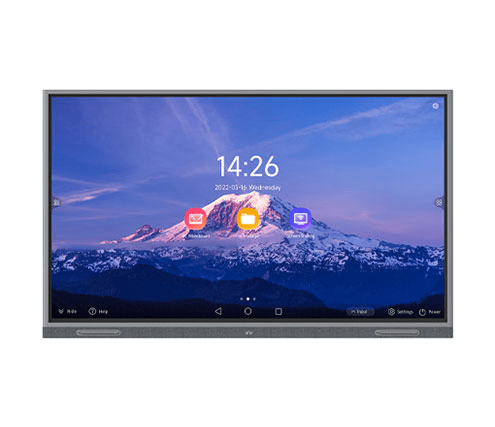

Note: The Uniview MW3565-U-X is a 65-inch 4K UHD Smart Interactive Display featuring Android 13.0, an Amlogic T982 quad-core processor, 4 GB RAM, 32 GB storage, and infrared touch technology supporting 32-point touch and 20-point writing. It supports dual-band Wi-Fi 5, Bluetooth 5.0, HDMI 4K@60 input, USB Type-C, and built-in 2 × 15 W speakers.
