| Features |
Description |
| Product Type |
86-inch Smart Interactive Display |
| Panel Size |
86 inches |
| Backlight |
DLED |
| Resolution |
3840 × 2160 (4K UHD) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1200:1 |
| Refresh Rate |
60 Hz |
| Response Time |
8 ms |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Color Support |
1.07 Billion Colors |
| Touch & System |
Description |
| Touch Technology |
Infrared Touch |
| Touch Control |
32-Point Touch / 20-Point Writing |
| Touch Precision |
±1 mm |
| Touch Response Time |
≤6 ms |
| Glass |
4 mm Tempered Glass, Anti-Glare |
| CPU |
Amlogic T982 Quad-Core A55 + Mali G52 GPU |
| CPU Frequency |
1.9 GHz |
| RAM / ROM |
4 GB DDR4 / 32 GB eMMC |
| Operating System |
Android 13.0 |
| Interface & Connectivity |
Description |
| Video Input |
3 × HDMI IN (4K), 1 × VGA IN, 1 × AV IN, 1 × YPbPr IN, 1 × DP IN |
| Video Output |
1 × HDMI OUT (4K), 1 × AV OUT |
| USB |
3 × USB 3.0 Front, 1 × USB 3.0, 1 × USB 2.0, 2 × TOUCH USB |
| Type-C |
1 × USB Type-C |
| Network |
1 × LAN IN + 1 × LAN OUT |
| Wireless |
Wi-Fi 5 + Wi-Fi 6, 2.4 GHz / 5 GHz |
| Bluetooth |
Bluetooth 5.2 |
| Control |
1 × RS232 |
| Audio & General |
Description |
| Speaker |
2 × 15 W Treble + 2 × 15 W Bass |
| Power Supply |
AC 100–240 V, 50/60 Hz |
| Power Consumption |
342.2 W (Without OPS) |
| Standby Power |
< 0.5 W |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Dimension |
1967 × 1173 × 88 mm |
| Weight |
68 kg |
| VESA Mount |
800 × 400 mm |

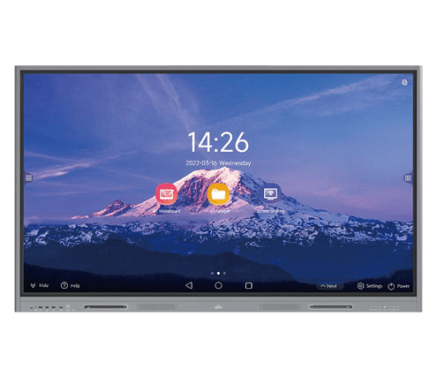

Note: The Uniview MW3586-U-CA is an 86-inch 4K UHD Smart Interactive Display featuring Android 13, an Amlogic T982 processor, 4 GB RAM, 32 GB storage, and infrared touch technology supporting 32-point touch and 20-point writing. It supports Wi-Fi 5/6, Bluetooth 5.2, HDMI 4K input/output, USB Type-C, and built-in speakers.
