| Features |
Description |
| Product Type |
86-inch Smart Interactive Display |
| Panel Size |
86 inches |
| Backlight |
DLED |
| Resolution |
3840 × 2160 (4K UHD) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1200:1 |
| Response Time |
8 ms |
| Refresh Rate |
60 Hz |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Color Support |
1.07 Billion Colors |
| Surface Hardness |
9H |
| Touch & System |
Description |
| Touch Technology |
Infrared Touch |
| Touch Control |
Up to 20-Point Multi-Touch |
| Touch Precision |
±1 mm |
| Touch Response Time |
≤10 ms |
| Recognizable Object |
5 Points, 2 mm |
| Glass |
4 mm Tempered Anti-Glare Glass |
| CPU |
RK3588: 4-Core A76 2.4 GHz + 4-Core A55 1.8 GHz |
| RAM / ROM |
8 GB DDR4 / 64 GB eMMC |
| Operating System |
Android 13.0 |
| Interface & Connectivity |
Description |
| Video Input |
3 × HDMI IN (4K@60) |
| Video Output |
1 × HDMI OUT (4K@60) |
| Audio Input |
1 × AUDIO IN |
| Audio Output |
1 × AUDIO OUT |
| USB |
3 × USB 3.0, 1 × USB Type-C, 1 × USB Type-B |
| Network |
2 × RJ45 10/100/1000 Mbps |
| Control |
1 × RS232 |
| Wi-Fi |
Wi-Fi 6 + Wi-Fi 5 Dual-Module, 2.4 / 5 GHz |
| Bluetooth |
Bluetooth 5.2 |
| Audio & General |
Description |
| Speaker |
2 × 17 W, Treble + Bass |
| Frequency Response |
80 Hz–20 kHz |
| Power Supply |
AC 100–240 V, 50/60 Hz |
| Power Consumption |
≤365 W (Without OPS) |
| Standby Power |
<0.5 W |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Dimension |
1967 × 1173 × 89 mm |
| Weight |
68 kg Net / 79.2 kg Gross |
| VESA Mount |
800 × 400 mm |

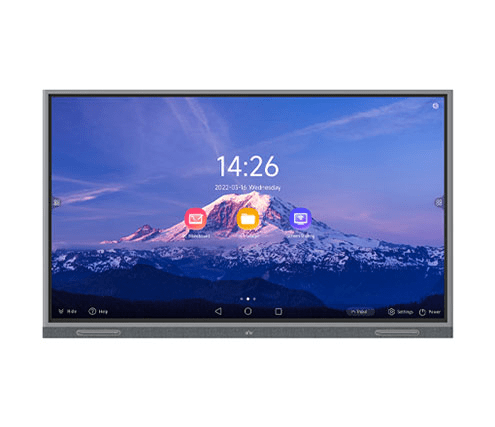

Note: The Uniview MW3586-U-E is an 86-inch 4K UHD Smart Interactive Display featuring Android 13.0, an RK3588 octa-core processor, 8 GB RAM, 64 GB storage, and infrared touch technology supporting up to 20-point multi-touch. It supports Wi-Fi 6/5, Bluetooth 5.2, HDMI 4K@60 input/output, USB Type-C, dual Gigabit Ethernet ports, and built-in 2 × 17 W speakers.
