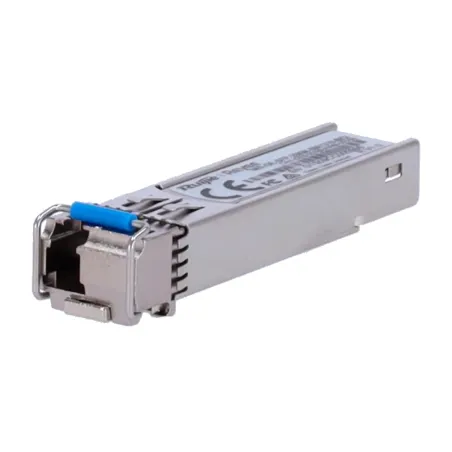

NIS-GE-SFP-20KM-SM1310-BIDI
Ruijie Reyee NIS-GE-SFP-20KM-SM1310-BIDI
1G BIDI SFP Fiber Transceiver Module
- Gigabit SFP transceiver with 1000BASE-LX support
- Supports Single Mode Fiber (SMF) with transmission distance up to 20km
- BiDi technology using single fiber for data transmission and reception
- TX 1310nm / RX 1550nm wavelength with LC connector
- Supports DDM (Digital Diagnostic Monitoring) for status monitoring
- Ideal for switch, router and long-distance fiber network connections
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee NIS-GE-SFP-20KM-SM1310-BIDI
| Features | Description |
|---|---|
| Device Type | Gigabit Bi-Directional SFP Fiber Transceiver Module |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1.25Gbps (1000BASE-LX) |
| Fiber Type | Single Mode Fiber (SMF) |
| Wavelength | TX 1310nm / RX 1550nm |
| Connector Type | LC Connector |
| Transmission Distance | Up to 20km |
| Fiber Core | 9/125μm Single Mode Fiber |
| Compatible Devices | Ruijie Switch, Router and Network Devices with Standard SFP Slot |
| Partner Module | Requires RG-NIS-GE-SFP-20KM-SM1550-BIDI at the opposite end |
| Optical Standard | IEEE 802.3z 1000BASE-LX |
|---|---|
| Transmission Mode | BIDI (Bi-Directional Single Fiber Transmission) |
| Fiber Usage | Uses One Single Mode Fiber Core for Transmit and Receive |
| Digital Diagnostic Monitoring (DDM) | Supported |
| Hot Swappable | Supported |
| Application | Fiber Uplink, Switch-to-Switch, Campus Network and Long-Distance Network Connection |
| SMART FEATURES | |
|---|---|
| BIDI Technology | Transmits and Receives Data Through a Single Fiber Cable, Reducing Fiber Usage |
| Long Distance Transmission | Supports Gigabit Fiber Communication Up to 20km |
| Plug and Play | Hot-Swappable SFP Design for Easy Installation and Replacement |
| DDM Monitoring | Monitors Optical Power, Temperature and Operating Status |
| Low Power Consumption | Energy-Efficient Design with Maximum Power Consumption Around 1.5W |
| GENERAL | |
|---|---|
| Dimensions | 56.5 × 13.5 × 8.5mm |
| Weight | Approximately 35g |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Power Supply | 3.3V DC |
| Warranty | 3 Years |
Note: The Ruijie Reyee NIS-GE-SFP-20KM-SM1310-BIDI is a Gigabit Bi-Directional SFP transceiver module designed for single-mode fiber networks. It supports 1000BASE-LX, 1Gbps data transmission, TX 1310nm/RX 1550nm wavelength, LC connector, and transmission distance up to 20km using a single fiber core. It is suitable for enterprise networks, CCTV systems, campus networks, and long-distance fiber uplink connections.
Important: The Ruijie Reyee NIS-GE-SFP-20KM-SM1310-BIDI is a Gigabit BIDI SFP optical module featuring 1000BASE-LX support, single-mode fiber operation, TX 1310nm / RX 1550nm wavelength, LC connector, 20km transmission distance, DDM monitoring, hot-swappable design, and low power consumption. It must be paired with the RG-NIS-GE-SFP-20KM-SM1550-BIDI module on the opposite end to establish a proper fiber link.
