| Features |
Specifications |
| Product Type |
128-Channel Enterprise Network Video Recorder |
| IP Video Input |
128 Channels |
| Video Compression |
Ultra 265, H.265, H.264 |
| Maximum Recording Resolution |
Up to 32 Megapixels |
| Incoming Bandwidth |
384 Mbps |
| Outgoing Bandwidth |
384 Mbps |
| Remote Users |
Up to 128 Users |
| ONVIF |
Supports ONVIF Profile S, Profile G and Profile T |
| RTSP |
Supported |
| ANR |
Supported |
Recording & Decoding
| Features |
Specifications |
| Decoding Capability |
2 × 32MP@30, 4 × 16MP@30, 5 × 12MP@30, 8 × 4K@30, 10 × 6MP@30, 12 × 5MP@30, 16 × 4MP@30, 20 × 3MP@30, 32 × 1080P@30, 54 × 960P@25, 72 × 720P@30, 128 × D1 |
| Recording Resolution |
32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Local Synchronous Playback |
16 Channels |
| Snapshot |
FTP / Schedule / Event Snapshot; 16 Channels |
| Audio Compression |
G.711A, G.711U |
| Two-Way Audio |
1 Channel via RCA |
| ANR |
Automatic Network Replenishment for recording continuity when the network is disconnected |
Video & Audio Output
| Features |
Specifications |
| HDMI Output |
2 × HDMI; up to 4K (3840 × 2160) @ 60Hz |
| VGA Output |
2 × VGA; up to 1920 × 1080 @ 60Hz |
| Display Groups |
HDMI1/VGA1 and HDMI2/VGA2 operate as two independent display groups |
| Live View |
Up to 64-channel display on HDMI1/VGA1 and up to 36-channel display on HDMI2/VGA2 |
| Corridor Mode |
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 Screen Modes |
| Audio Input |
1 × RCA |
| Audio Output |
2 × RCA |
Storage & RAID
| Features |
Specifications |
| SATA Interfaces |
8 × SATA Interfaces |
| Maximum HDD Capacity |
Up to 24 TB per HDD |
| Disk Group |
Supported |
| RAID |
RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 |
| Hot Swap |
Supported |
| N+1 Hot Spare |
Supported |
| Redundant Power Supply |
Optional |
Smart & AI Features
| Features |
Specifications |
| Face Detection |
Supported via IPC |
| Vehicle Detection |
Supported via IPC |
| Smart Intrusion Prevention |
Intrusion Detection, Cross Line Detection, Enter Area and Leave Area |
| Ultra Motion Detection |
Supported |
| People Counting |
People Flow Counting and Crowd Density Monitoring |
| Video Metadata |
Supported |
| Traffic Monitoring |
Supported |
| VCA Search |
Motor Vehicle, Non-Motor Vehicle, Human Body, General Search, People Counting Report and Heat Map |
| Vehicle Picture Library |
Up to 5 Libraries with up to 25,000 Vehicle Pictures in Total |
Network & Interface
| Features |
Specifications |
| Network Interface |
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Ports |
| USB |
2 × USB 2.0 Front Panel, 2 × USB 3.0 Rear Panel |
| RS485 |
1 × RS485 |
| RS232 |
1 × RS232 |
| Alarm Input |
16 Channels |
| Alarm Output |
10 Channels |
| eSATA |
1 × eSATA |
| Power Output |
12 V DC |
| Network Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1X, IPv4 and IPv6 |
Alarm & Event
| Features |
Specifications |
| Video Events |
Defocus Detection, Scene Change, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection and Video Loss |
| Alarm Events |
Alarm Input and Audio Detection |
| System Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Low Disk Space, Disk Full and Recording/Snapshot Abnormal |
Hardware & General
| Features |
Specifications |
| Power Supply |
AC 100–240 V |
| Power Consumption |
≤ 50 W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-Condensing |
| Dimensions |
442 × 448 × 93 mm |
| Weight |
≤ 6 kg without HDD |
| Certification |
CE, FCC, UL, RoHS, WEEE |

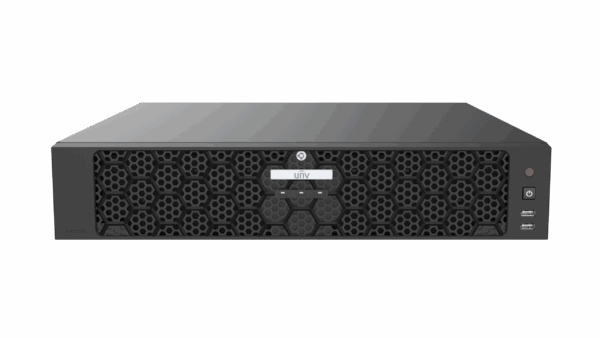

Note: Uniview NVR508-128E-R is a 128-channel enterprise network video recorder supporting up to 32MP recording, 8 SATA HDDs, RAID 0/1/5/6/10, hot-swap storage and N+1 hot spare.
Important: HDD capacity and supported features may vary depending on firmware, hardware revision and operating conditions. Please verify the latest manufacturer datasheet before installation.
