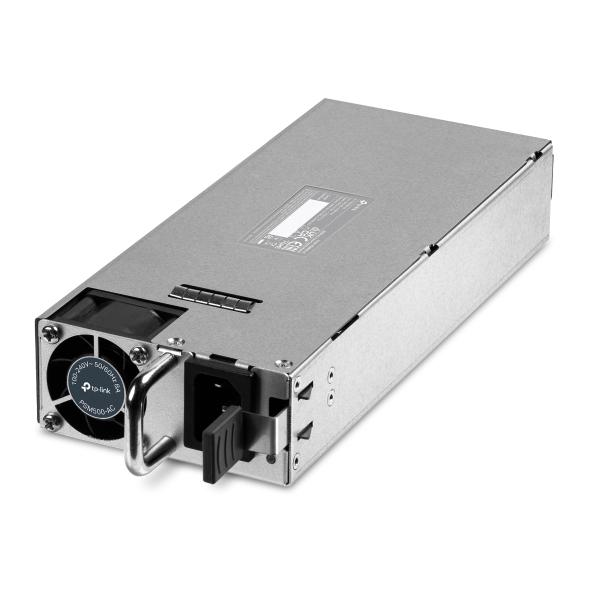

Specifications TP-Link Omada PSM500-AC
| Features | Specifications |
|---|---|
| Product Type | 500W AC Power Supply Module |
| Model | PSM500-AC |
| Power Supply Type | AC Input / DC Output |
| AC Input Voltage | 100–240V AC |
| AC Input Frequency | 50/60 Hz |
| Maximum Input Current | 8A |
| DC Output Voltage | 53.5V DC |
| Maximum Output Current | 9.35A |
| Maximum Output Power | 500W |
| Redundant Power Supply | Supported |
| Hot-Swappable | Supported |
| LED Indicator | Multi-function indication: Standby, Normal, Alarm and Fault |
| Protection | Output Over-voltage, Under-voltage, Short Circuit and Over-current Protection |
| Surge Protection | ±6 kV |
| Maximum Operating Altitude | Up to 3,000 m above sea level |
| Dimensions (W × D × H) | 259.5 × 95.8 × 40.1 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Storage Humidity | 5–90% RH, Non-condensing |
| Compatible Devices | SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y and S6500-48MPP6Y |
Important: The PSM500-AC is a hot-swappable 500W AC power supply module designed for compatible TP-Link Omada and Omada Pro switches. Please verify compatibility before installation.
