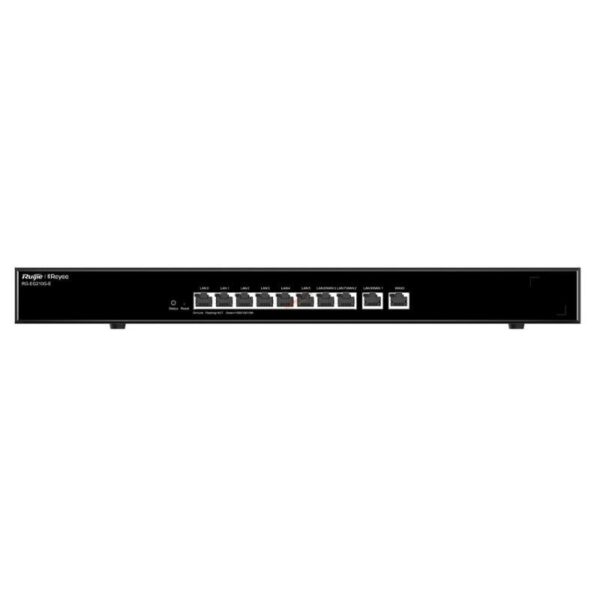

Reyee RG-EG210G-E

Reyee รุ่น RG-EG210G-E

Cloud Router 2 WAN, IPSec VPN, Internet 1Gbps


  • Reyee RG-EG210G-E Cloud Managed Router 2 WAN (เพิ่มได้สูงสุด 4WAN)

  • IPSec VPN 8 Tunnels, รองรับ Internet Throughput 1Gbps

  • รองรับ Users ได้ 200 Concurrent

  • พร้อม Switch Gigabit 10 Port Gigaibit

หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Product Specification


Reyee RG-EG210G-E Cloud Managed Router 2 WAN (เพิ่มได้สูงสุด 4WAN) , IPSec VPN 8 Tunnels, รองรับ Internet Throughput 1Gbps, รองรับ Users ได้ 200 Concurrent, พร้อม Switch Gigabit 10 Port Gigaibit

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Fixed ports

10 10/100/1000M Base-T ports, supporting up to 4 WAN ports (Default: 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports)







Maximum number of clients

Up to 200 concurrent clients

Recommended bandwidth

ความเร็ว 1Gbps asymmetric bandwidth (flow control disabled)
1Gbps asymmetric bandwidth (flow control enabled)

Local power supply

Support 220V AC local power supply

Power consumption


Basic network features

Network access

PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers


Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams


ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping

Other protocols

DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS


Application recognition

Built-in self-developed application signature database to identify applications
Support free upgrades

Flow control

Support custom flow control policies, IP-based automatic bandwidth assignment

Traffic audit

Real-time traffic audit, IP traffic visualization

Behavior management

Time-based and IP policy-based access control


IPsec VPN (8 tunnels) server and client

Wireless management

Management capacity

In AC mode, the maximum management capacity is 500
In gateway mode, the maximum management capacity is 150

AP management

Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist


Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track

Switch management

Management capacity

Maximum manageable cloud managed switches: 128

Port management

Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search

Status display

Port statistics, monitoring information, cable detection, VLAN configuration, MAC list

Device management

Per-device upgrade, batch upgrade

Special features

Featured solutions

Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution

Flexible management

Eweb and Ruijie Cloud

Physical specifications






Operating temperature: 0 – 40C
Storage temperature: -10C – 70C


Operating humidity: 10% ~ 90%  (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
