| Features |
Description |
| Device Type |

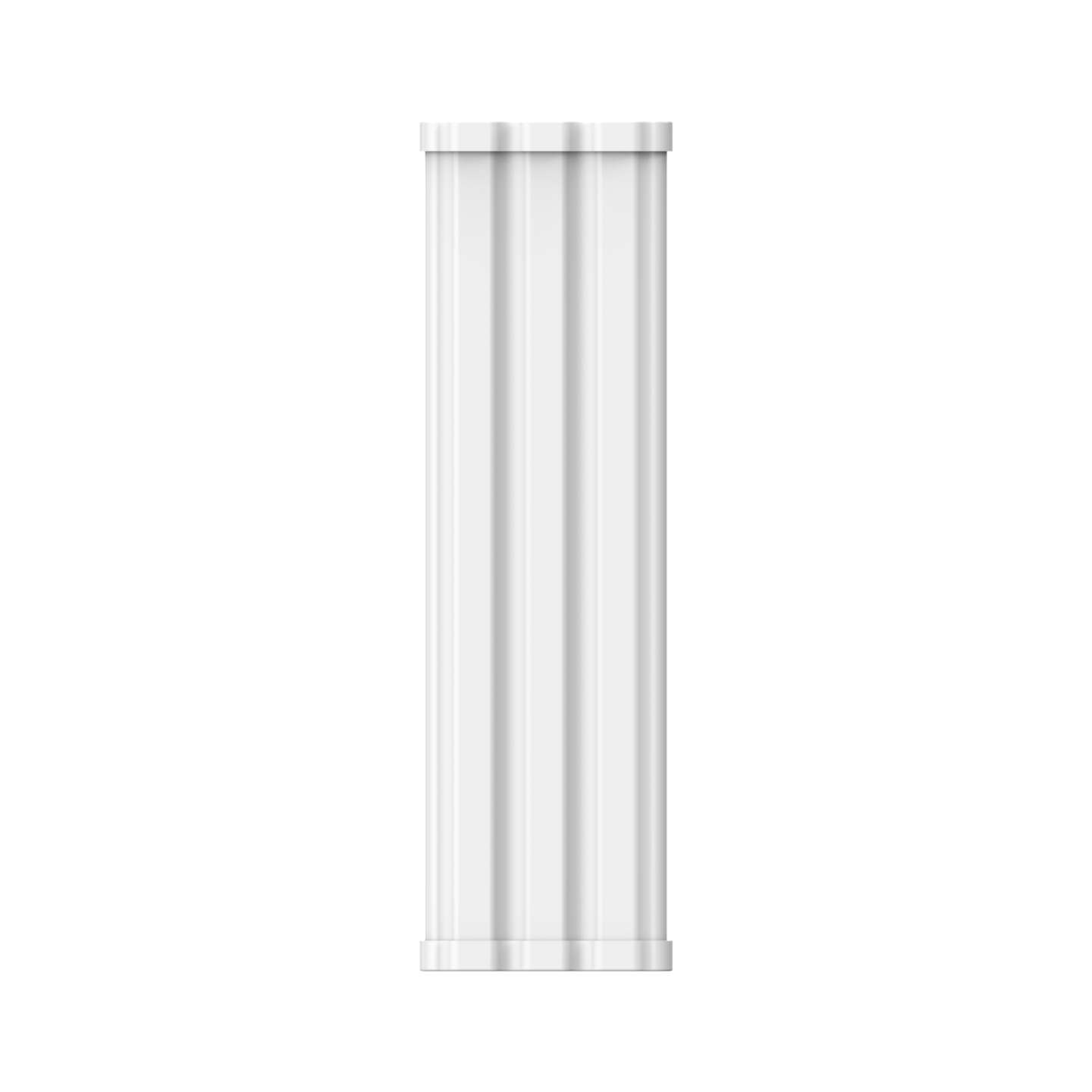

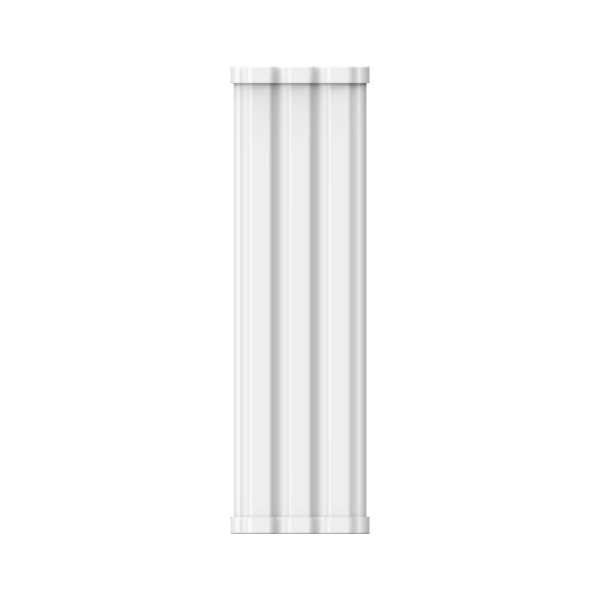

5GHz 120° Sector Antenna for RG-AirMetro Series Wireless Bridge |
| Antenna Type |
External Sector Directional Antenna |
| Frequency Range |
5GHz Band |
| Antenna Gain |
16dBi |
| Horizontal Beamwidth |
120° |
| Vertical Beamwidth |
10° |
| Polarization |
Dual Polarization |
| Maximum Distance |
Up to 5km Wireless Coverage |
| Compatible Devices |
Ruijie Reyee RG-AirMetro550G-B PTMP Base Station |
| Protection Rating |
IP55 Weatherproof |
| Antenna Application |
Point-to-Multipoint (PTMP) Outdoor Wireless Bridge Deployment |
| Beam Direction |
Sector Coverage 120° |
| Connector Type |
External Antenna Interface |
| Wind Resistance |
Up to 220.32 km/h (137 mph) |
| Installation |
Pole Mount |
| Operating Temperature |
-40°C to +80°C |
| SMART FEATURES |
| Sector Coverage |
Provides 120° Directional Coverage for PTMP Wireless Networks |
| PTMP Support |
Designed for RG-AirMetro550G-B Base Station Supporting Multiple CPE Connections |
| Long Distance Wireless |
Supports Outdoor Wireless Coverage Up to 5km with Compatible CPE Devices |
| Outdoor Design |
IP55 Protection for Reliable Operation in Outdoor Environments |
| High Gain Antenna |
16dBi Gain Improves Wireless Signal Strength and Coverage Area |
| GENERAL |
| Dimensions |
110 × 48.5 × 361mm (Without Mounting Bracket) |
| Weight |
Approximately 1.5kg |
| MTBF |
400,000 Hours |
| Mounting |
Pole Mount |
| Warranty |
3 Years |
Note: The RG-ANT16S-120 is a 5GHz 16dBi sector antenna designed for the Ruijie Reyee RG-AirMetro series wireless bridge. It provides 120° horizontal coverage, 10° vertical beamwidth, and supports PTMP wireless deployments with coverage up to 5km. It is suitable for WISP, CCTV, factories, towns, city roads, and outdoor wireless network applications.
Important: The Ruijie Reyee RG-ANT16S-120 is a 5GHz external sector antenna featuring 16dBi gain, 120° horizontal coverage, 10° vertical beamwidth, IP55 weatherproof protection, wind resistance up to 220.32 km/h, and compatibility with the RG-AirMetro550G-B PTMP base station. It is ideal for WISP, CCTV, factory, campus, and outdoor wireless bridge deployments requiring wider sector coverage.
