| Features |
Description |
| Product Type |
Wi-Fi 6 Dual-Radio Wall Plate Access Point |
| Wi-Fi Standard |
IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Class |
AX3000 |
| Max. Data Rate |
Up to 2.976 Gbps |
| 2.4 GHz |
2 × 2 MU-MIMO, up to 574 Mbps |
| 5 GHz |
2 × 2 MU-MIMO, up to 2.402 Gbps |
| Spatial Streams |
4 Spatial Streams |
| Antennas |
Built-in Omnidirectional Antennas |
| Uplink |
1 × 2.5GbE Ethernet Port |
| PoE Output |
Supported on LAN1 for powering external devices |
| PoE Input |
IEEE 802.3af/at |
| Management |
Fat / Fit / Cloud Mode |
| Cloud Management |
Ruijie Cloud |
| Recommended Active Clients |
Up to 120 devices per AP |
| Maximum Associated Clients |
Up to 256 clients |
| Mounting |
Wall Mount / Junction Box Mount |
| Dimensions |
86 × 170 × 43 mm |
| Weight |
Approx. 0.3 kg |
| WIRELESS |
| Radio Design |
Dual-Radio, 4 Spatial Streams |
| 2.4 GHz |
802.11b/g/n/ax, 2 × 2 MU-MIMO, up to 574 Mbps |
| 5 GHz |
802.11a/n/ac/ax, 2 × 2 MU-MIMO, up to 2.402 Gbps |
| Combined Data Rate |
Up to 2.976 Gbps |
| Channel Width |
Up to 160 MHz on 5 GHz |
| Wireless Technologies |
OFDMA / MU-MIMO / Beamforming / BSS Coloring |
| Roaming |
IEEE 802.11k/v/r |
| Antenna Type |
Built-in Omnidirectional Antenna |
| Antenna Gain |
2.4 GHz: 3.5 dBi / 5 GHz: 4.5 dBi |
| Maximum Transmit Power |
2.4 GHz: 20 dBm / 5 GHz: 20 dBm |
| NETWORK & INTERFACE |
| Uplink Port |
1 × 2.5GbE Ethernet Port |
| PoE Input |
IEEE 802.3af/at |
| PoE Output |
LAN1 PoE Passthrough for IP Phones and IoT Devices |
| Management Port |
Console Port |
| Network Protocols |
IPv4 / IPv6 / DHCP / DNS / HTTP / HTTPS / SNMP / SSH / Telnet |
| VLAN |
802.1Q VLAN |
| QoS |
WMM / Traffic Rate Limiting |
| MANAGEMENT & SECURITY |
| Management Mode |
Fat / Fit / Cloud |
| Cloud Management |
Ruijie Cloud |
| Authentication |
WPA / WPA2 / WPA3 / 802.1X |
| SSID |
Up to 32 BSSIDs, up to 16 BSSIDs per radio |
| SSID Hiding |
Supported |
| Client Limiting |
SSID-based / Radio-based STA Limiting |
| Bandwidth Control |
STA / SSID / AP-based Rate Limiting |
| Maximum Associated Clients |
256 |
| Recommended Active Devices |
120 per AP |
| POWER & GENERAL |
| Power Supply |
IEEE 802.3af/at PoE or DC Power |
| DC Power Adapter |
48 V / 0.6 A, sold separately |
| Mounting |
Wall Mount / 86 mm / European Standard / American Standard Junction Box |
| Dimensions |
86 × 170 × 43 mm |
| Weight |
Approx. 0.3 kg (main unit) |
| Operating Temperature |
0°C ~ 40°C |
| Operating Humidity |
5% ~ 95%, Non-Condensing |
| Product Type |
Indoor Wall Plate Access Point |

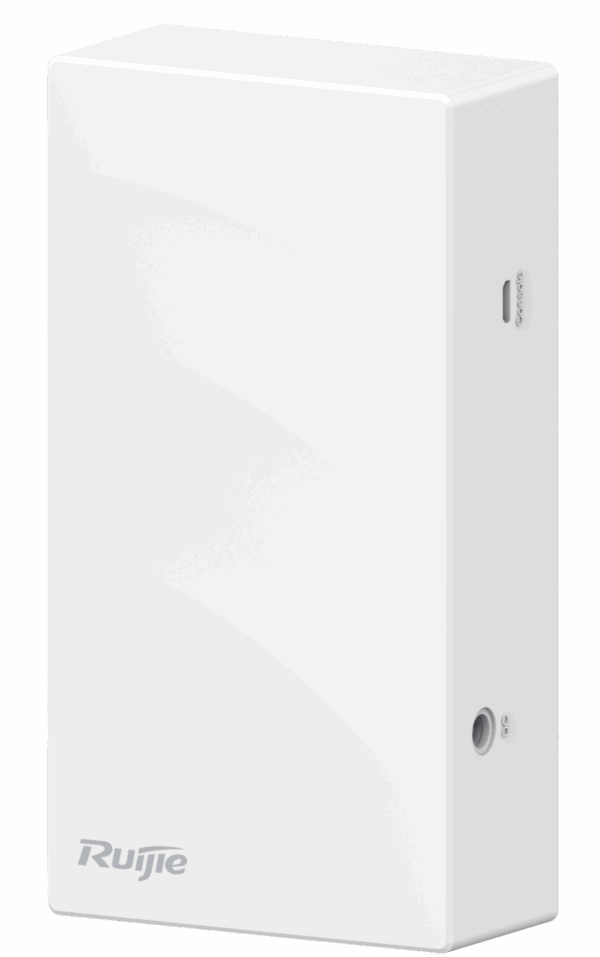

Note: The Ruijie RG-AP180P-L is a Wi-Fi 6 AX3000 dual-radio wall plate access point with up to 2.976 Gbps combined wireless throughput. It features a 2.5GbE uplink, 2 × 2 MU-MIMO on both 2.4 GHz and 5 GHz, 160 MHz channel width, PoE passthrough on LAN1, and Fat/Fit/Cloud management modes. It is designed for high-density indoor environments such as hotels, apartments, offices and educational facilities.
