| Features |
Description |
| Device Type |
Layer 3 Managed Core/Aggregation Switch |
| SFP Ports |
24 × 1GE SFP Ports, with 8 × 1GE SFP/RJ45 Combo Ports |
| Uplink Ports |
8 × 1GE/10GE SFP+ Ports |
| Switching Capacity |
688 Gbps |
| Packet Forwarding Rate |
512 Mpps |
| MAC Address Table |
64K |
| VSU |
Supported, Up to 4 Members |
| Layer 3 Routing |
Static Routing, RIP, OSPF, IS-IS, BGP and IPv4/IPv6 |
| Management |
Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| Power Supply |
2 × Hot-Swappable Modular Power Supply Slots |
| Design |
1U Rack-Mountable with Built-in Fans |
| INTERFACE |
| SFP Ports |
24 × 1GE SFP Ports |
| Combo Ports |
Ports 1–8 support 1GE SFP / 10/100/1000BASE-T RJ45 |
| 100Mbps Support |
SFP Ports 1–16 support 100Mbps/1Gbps; Ports 17–24 support 1Gbps only |
| SFP+ Uplink Ports |
8 × 1GE/10GE SFP+ Ports |
| Expansion Slot |
1 × Expansion Module Slot |
| Management Port |
1 × RJ45 MGMT Port |
| Console Port |
1 × RJ45 Console Port |
| USB |
1 × USB 3.0 Port |
| Power Module Slots |
2 × Modular Power Supply Slots |
| SWITCHING PERFORMANCE |
| Switching Capacity |
688 Gbps |
| Packet Forwarding Rate |
512 Mpps |
| MAC Address Table |
64,000 |
| ARP Table |
24,000 |
| IPv4 Unicast Routes |
24,000 |
| IPv4 Multicast Routes |
4,000 |
| IPv6 Unicast Routes |
14,000 |
| IPv6 Multicast Routes |
2,000 |
| ACL Entries |
Ingress: 7,000 / Egress: 1,500 |
| Switch Buffer |
4 MB |
| VSU Members |
Up to 4 |
| SMART FEATURES |
| Ruijie Cloud |
Cloud-Based Network Management, Monitoring and Configuration |
| VSU |
Virtual Switching Unit, Supports Up to 4 Members for Network Virtualization and Redundancy |
| Zero Touch Provisioning |
Supported |
| Hardware Boot Redundancy |
Dual Flash Chips Provide 1+1 Boot Program Redundancy |
| Hot-Swappable Power |
Supported |
| CPP |
CPU Protection Policy Helps Protect the CPU Against Excessive Traffic |
| NFPP |
Network Foundation Protection Policy Helps Protect the Network from Abnormal or Malicious Traffic |
| Network Monitoring |
Real-Time Device and Network Monitoring |
| Configuration Backup |
Supported via USB |
| LAYER 3 FEATURES |
| Static Routing |
Supported |
| RIP |
Supported |
| RIPng |
Supported |
| OSPF |
OSPFv2 / OSPFv3 |
| IS-IS |
IS-ISv4 / IS-ISv6 |
| BGP |
BGP4 / BGP4+ |
| IPv4 / IPv6 |
Dual-Stack Supported |
| VRF |
IPv4 / IPv6 VRF |
| Policy-Based Routing |
Supported |
| Multicast Routing |
IGMP / PIM |
| SWITCHING FEATURES |
| VLAN |
IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN |
Supported |
| Private VLAN |
Supported |
| MAC VLAN |
Supported |
| Protocol VLAN |
Supported |
| IP-Subnet VLAN |
Supported |
| QinQ |
Basic QinQ / Flexible QinQ |
| GVRP |
Supported |
| STP |
STP / RSTP / MSTP |
| ERPS |
IEEE G.8032 |
| Link Aggregation |
LACP (IEEE 802.3ad) |
| LLDP |
LLDP / LLDP-MED |
| Jumbo Frame |
Up to 9,216 Bytes |
| NETWORK MANAGEMENT |
| Management Methods |
Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP |
SNMP v1 / v2c / v3 |
| DHCP |
DHCP Client / Server / Relay / Snooping |
| IPv6 DHCP |
DHCPv6 Client / Relay / Snooping |
| DNS |
Supported |
| Configuration Backup |
Supported via USB |
| HARDWARE |
| CPU |
Dual-Core CPU, 1.2GHz per Core |
| Memory |
1GB |
| Flash Memory |
4GB |
| BootROM |
16MB, 2 Flash Chips for 1+1 Boot Redundancy |
| Switch Buffer |
4MB |
| Expansion Slot |
1 × Expansion Module Slot |
| Rack Height |
1U |
| EXPANSION |
| Expansion Module |
CM85-4XS2CQ |
| Expansion Interfaces |
4 × 1GE/10GE SFP+ Ports + 2 × 40GE/100GE QSFP28 Ports |
| POWER |
| Power Supply |
2 × Pluggable Modular Power Supply Slots |
| Power Module |
RG-PA150IB-F |
| Power Module Output |
150W |
| Power Redundancy |
1+1 Redundancy |
| Power Module Hot Swap |
Supported |
| Maximum Power Consumption |
77W Without Expansion Module / 102W With Expansion Module |
| ENVIRONMENT & RELIABILITY |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |
| Operating Altitude |
0m to 5,000m |
| Fan |
3 × Built-in Fixed Fan Modules |
| Airflow |
Left-to-Right |
| MTBF |
823,000 Hours |
| ESD Protection |
Contact/Air Discharge: 6kV/8kV |
| Surge Protection |
MGMT Port: 4kV / Service Port: 10kV / Power Port: 6kV Common Mode and Differential Mode |
| PHYSICAL |
| Dimensions |
442 × 420 × 43.6mm |
| Weight |
4.3kg, Excluding Power Modules |
| Installation |
19-inch Rack Mount, 1U |

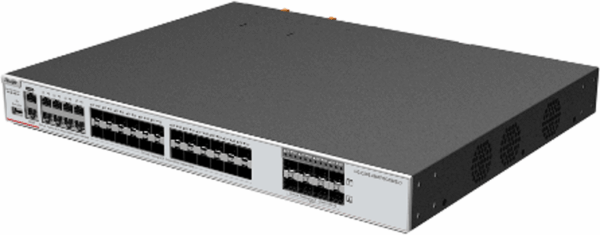

Note: The Ruijie RG-CS85-24SFP/8GT8XS-D is a Layer 3 managed core/aggregation switch designed for large-sized campus networks and as a core switch for small and medium-sized enterprise networks. It provides 24 × 1GE SFP ports, including 8 combo ports supporting 1GE SFP or 10/100/1000BASE-T RJ45, plus 8 × 1GE/10GE SFP+ uplink ports. It offers 688Gbps switching capacity, 512Mpps forwarding performance, a 64K MAC address table, Layer 3 routing, VSU virtualization, redundant hot-swappable power supplies and an expansion slot.
Important: The RG-CS85-24SFP/8GT8XS-D is a Layer 3 Managed Core/Aggregation Switch and does not provide PoE. Ports 1–16 support 100Mbps/1Gbps SFP, while ports 17–24 support 1Gbps SFP. Ports 1–8 are combo interfaces that can operate as either SFP or 10/100/1000Mbps RJ45. The 8 SFP+ uplink ports support 1Gbps/10Gbps. At least one RG-PA150IB-F 150W power module must be purchased separately.
