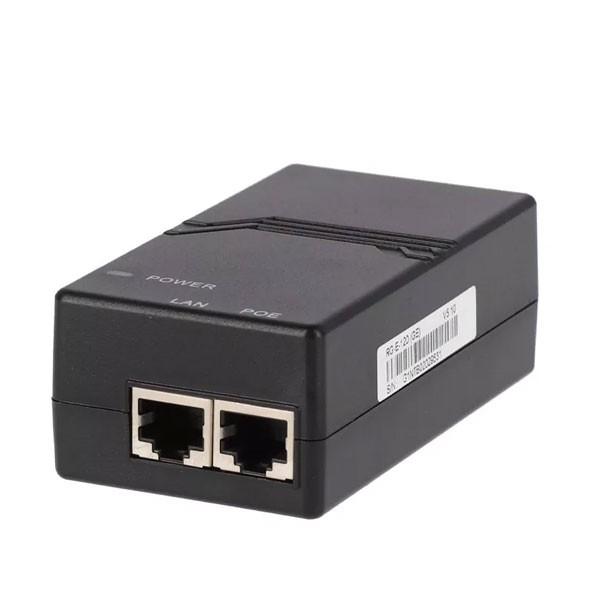

RG-E-120(GE)
Ruijie Reyee RG-E-120(GE)
1-Port Gigabit PoE Injector
- 1×Gigabit Ethernet PoE injector (10/100/1000Mbps)
- Supports IEEE 802.3af PoE standard with up to 15.4W power output
- Provides 50–52V DC power for PoE devices
- Supports automatic PD detection and short-circuit protection
- Supports power transmission distance up to 100m
- Ideal for Access Point, IP Phone, IP Camera and PoE devices
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-E-120(GE)
| Features | Description |
|---|---|
| Device Type | 1-Port Gigabit PoE Injector (Power Adapter) |
| Network Port | 1 × 10/100/1000Base-T Gigabit Ethernet Port |
| PoE Output Port | 1 × Gigabit PoE Output Port |
| PoE Standard | IEEE 802.3af PoE |
| PoE Power Output | Up to 15.4W |
| Output Voltage | 50V DC |
| Input Voltage | 100-240V AC, 50/60Hz |
| Transmission Speed | 10/100/1000Mbps Gigabit Ethernet |
| Maximum Distance | Up to 100m Ethernet Cable Transmission |
| Compatible Devices | Wireless Access Point, SOHO Switch, IP Phone, IP Camera and Other IEEE 802.3af PoE Devices |
| Interface | 1 × Gigabit Ethernet Input + 1 × Gigabit PoE Output |
|---|---|
| PoE Type | Active PoE (IEEE 802.3af) |
| Power Delivery | Automatic Detection and Intelligent Power Matching |
| Protection | Short Circuit Protection and Non-PoE Device Protection |
| Installation | Desktop / Wall Mount |
| Application | Indoor Wireless AP, IP Phone, IP Camera and Network Devices |
| SMART FEATURES | |
|---|---|
| Auto Detection | Automatically Detects PoE Devices and Supplies Required Power |
| Gigabit Transmission | Supports High-Speed Data Transmission Through Gigabit Ethernet Port |
| Safe Power Supply | Provides Reliable Power Delivery and Prevents Damage to Non-PoE Devices |
| Plug and Play | No Configuration Required, Easy Installation and Deployment |
| Compact Design | Small Size Suitable for Wireless AP and Network Device Installation |
| GENERAL | |
|---|---|
| Dimensions | Approximately 85 × 50 × 35mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Storage Temperature | -40°C to 70°C |
| Weight | Approximately 200g |
| Warranty | 3 Years |
Note: The RG-E-120(GE) is a 1-port Gigabit PoE Injector supporting IEEE 802.3af standard with up to 15.4W power output. It provides Gigabit Ethernet data transmission and power delivery over a single network cable up to 100m, suitable for wireless access points, IP phones, IP cameras, and other PoE devices.
Important: The Ruijie Reyee RG-E-120(GE) is a Gigabit PoE Injector featuring 1 × 10/100/1000Base-T input port, 1 × PoE output port, IEEE 802.3af support, 15.4W maximum PoE power, automatic PD detection, short circuit protection, and up to 100m transmission distance. It is ideal for powering Ruijie Reyee wireless access points and other compatible PoE network devices.
