RG-ES116G-L

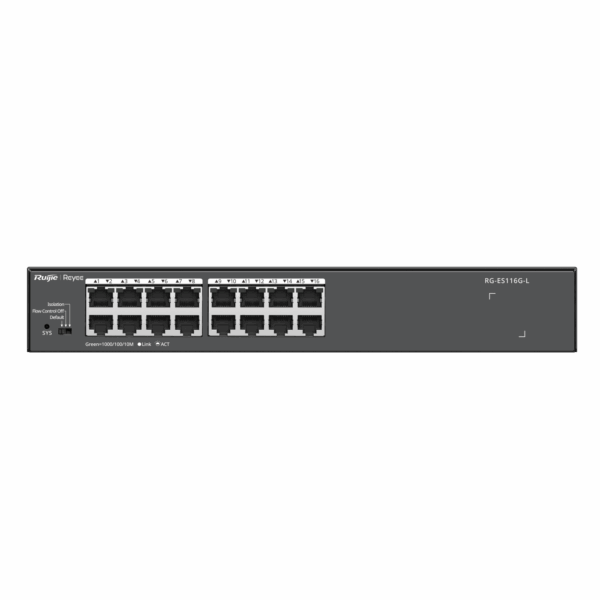

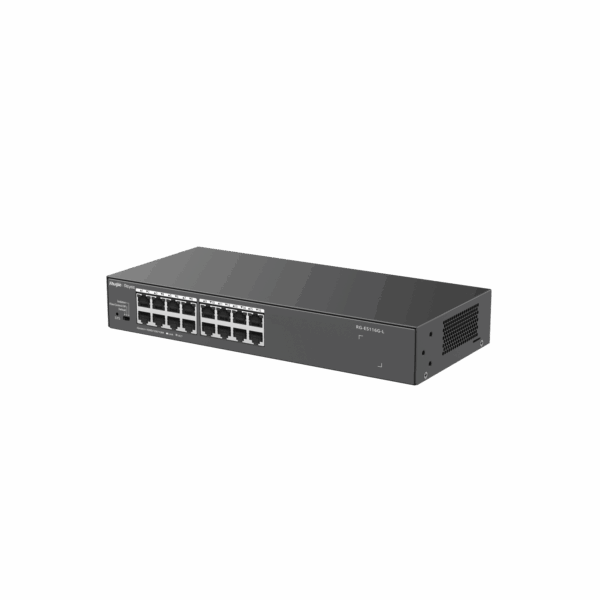

Ruijie Reyee RG-ES116G-L
16-Port Gigabit Unmanaged Switch
- 16×10/100/1000Mbps Gigabit RJ45 ports
- Plug & Play with no configuration required
- Visible on Ruijie Cloud for network topology monitoring
- 32Gbps switching capacity with 23.8Mpps forwarding rate
- Supports port isolation for secure CCTV networks
- Fanless metal design suitable for offices, shops and surveillance systems
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES116G-L
| Features | Description |
|---|---|
| Device Type | 16-Port 10/100/1000Mbps Unmanaged Gigabit Switch |
| Ports | 16 × 10/100/1000BASE-T RJ45 Ports |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K Entries |
| Management | Unmanaged (Plug & Play) |
| Cloud Visibility | Visible on Ruijie Cloud* |
| Surge Protection | 4kV Port Surge Protection |
| Cooling | Fanless Design |
| Application | Home, Office, Retail, Café and CCTV Network |
| Switch Type | Layer 2 Unmanaged Switch |
|---|---|
| Network Ports | 16 × Gigabit RJ45 Ports |
| Transmission Mode | Store-and-Forward |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Mounting | Desktop / Rack Mount |
| Housing | Metal Enclosure |
| SMART FEATURES | |
|---|---|
| Plug & Play | No Configuration Required for Quick Deployment |
| Gigabit Speed | High-Speed Network Performance for PCs, NAS, IP Cameras and NVRs |
| Port Isolation | Improves Security and Stability for CCTV Networks |
| Cloud Visibility | Supports Device Visibility via Ruijie Cloud* |
| Energy Saving | Fanless, Low-Power Design for Silent Operation |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | Max. 11W |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 280 × 125 × 43.6mm |
| Warranty | 3 Years |
Note: *Ruijie Cloud visibility requires at least one compatible managed Ruijie switch on the same network. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES116G-L is a 16-port Gigabit unmanaged switch featuring plug-and-play installation, 32Gbps switching capacity, metal housing, fanless operation, 4kV surge protection, and Ruijie Cloud visibility. It is ideal for offices, retail stores, cafés, and CCTV network deployments.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
