RG-ES126FGS-LP

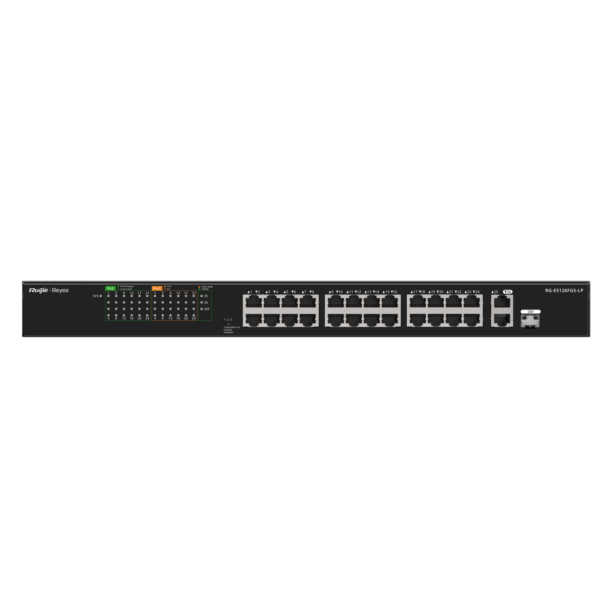

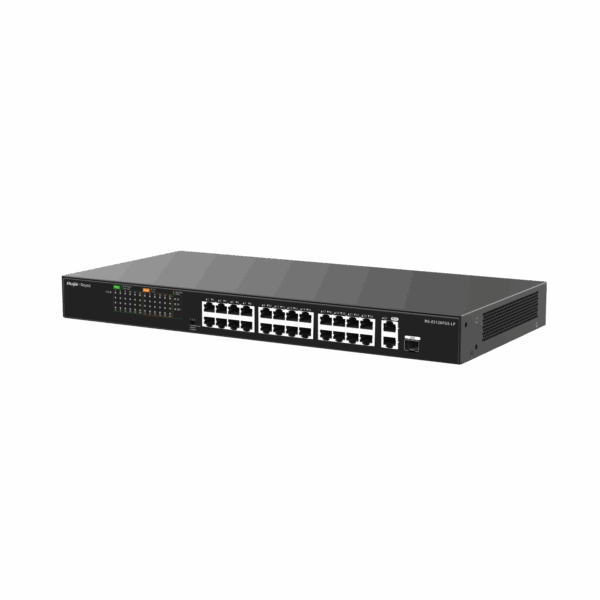

Ruijie Reyee RG-ES126FGS-LP
26-Port Unmanaged PoE Switch
- 24×10/100Mbps PoE+ ports with 2×Gigabit uplink ports
- Supports IEEE 802.3af/at with 180W PoE budget
- Plug & Play with no configuration required
- Supports PoE Watchdog, Port Isolation and 250m Extend Mode
- Visible on Ruijie Cloud for network monitoring
- Ideal for CCTV, offices, retail shops and surveillance networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES126FGS-LP
| Features | Description |
|---|---|
| Device Type | 26-Port Unmanaged PoE Switch |
| Ports | 24 × 10/100Mbps PoE+ RJ45 Ports, 2 × Gigabit Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 180W Total PoE Budget |
| Switching Capacity | 8.8Gbps |
| Forwarding Rate | 6.5Mpps |
| MAC Address Table | 8K Entries |
| Management | Unmanaged (Plug & Play) |
| Cloud Visibility | Visible on Ruijie Cloud* |
| Application | CCTV, Office, Retail Store, Warehouse and Enterprise Network |
| Switch Type | Layer 2 Unmanaged PoE Switch |
|---|---|
| Network Ports | 24 × Fast Ethernet PoE+ Ports + 2 × Gigabit Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Work Modes | Default Mode, Extend Mode, Port Isolation |
| Housing | Metal Enclosure |
| Cooling | Fan Cooling |
| SMART FEATURES | |
|---|---|
| Plug & Play | No Configuration Required for Easy Installation |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Extend Mode | Supports PoE Transmission Distance up to 250m at 10Mbps |
| Port Isolation | Enhances Network Security by Isolating PoE Ports |
| Cloud Visibility | Supports Device Visibility via Ruijie Cloud* |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 180W (Full PoE Load) |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 207 × 44mm |
| Warranty | 3 Years |
Note: *Ruijie Cloud visibility for unmanaged switches requires at least one compatible Ruijie managed switch on the same network. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES126FGS-LP is a 26-port unmanaged PoE switch featuring 24 PoE+ ports, 2 Gigabit uplink ports, 180W PoE budget, PoE Watchdog, Extend Mode, Port Isolation, and Ruijie Cloud visibility. It is designed for CCTV surveillance, office, retail, and enterprise network deployments.
