RG-ES205GC-P

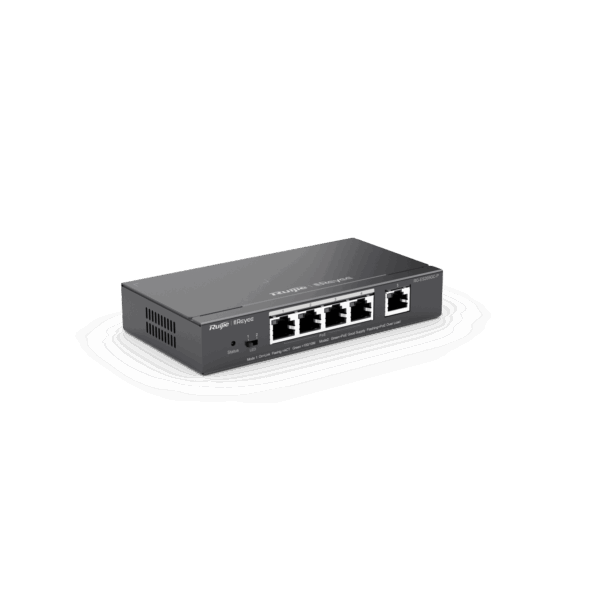

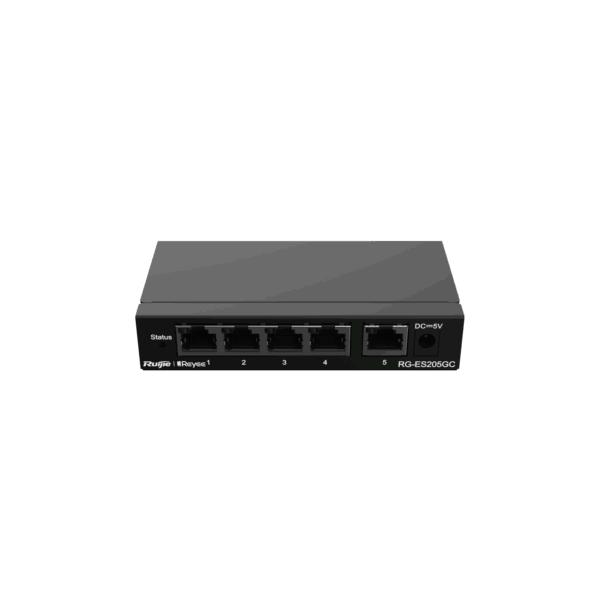

Ruijie Reyee RG-ES205GC-P
5-Port Gigabit Smart Cloud Managed PoE Switch
- 5×10/100/1000Mbps Gigabit RJ45 ports with 4×PoE+ ports
- Supports IEEE 802.3af/at with 54W PoE budget
- Layer 2 Smart Managed Switch with Ruijie Cloud Management
- 10Gbps switching capacity with 7.44Mpps forwarding rate
- Supports VLAN, PoE Watchdog, Port Isolation and CCTV Optimization
- Fanless metal design with 4kV surge protection
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-ES205GC-P
| Features | Description |
|---|---|
| Device Type | 5-Port Gigabit Smart Cloud Managed PoE Switch |
| Ports | 5 × 10/100/1000BASE-T RJ45 Ports (4 × PoE+ Ports) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 54W Total PoE Budget |
| Switching Capacity | 10Gbps |
| Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud / Reyee App |
| Cooling | Fanless Design |
| Application | CCTV, Office, Retail Store, Hotel, Factory and SMB Network |
| Switch Type | Layer 2 Smart Cloud Managed PoE Switch |
|---|---|
| Network Ports | 5 × Gigabit RJ45 Ports (4 × PoE+) |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Management Method | Ruijie Cloud App / Ruijie Cloud Platform |
| Installation | Desktop / Wall Mount |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| IP Camera Recognition | Automatically Detects IP Cameras for CCTV Network Optimization |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Loop Prevention | Automatic Loop Detection and Protection for Network Stability |
| VLAN Configuration | Easy VLAN Configuration via Ruijie Reyee App |
| Port Isolation | Enhances Network Security for Surveillance Deployments |
| GENERAL | |
|---|---|
| Power Supply | 54V DC External Power Adapter |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 148 × 78 × 27mm |
| Warranty | 3 Years |
Note: Product specifications and software features are subject to change without prior notice. Cloud management requires an Internet connection to access Ruijie Cloud services.
Important: The Ruijie Reyee RG-ES205GC-P is a 5-port Gigabit smart cloud managed PoE switch featuring 4 PoE+ ports, a 54W PoE budget, 10Gbps switching capacity, 7.4Mpps forwarding rate, IP camera recognition, PoE Watchdog, automatic loop prevention, VLAN management, and fanless operation. It is ideal for CCTV, office, retail, hotel, factory, and SMB network deployments.
