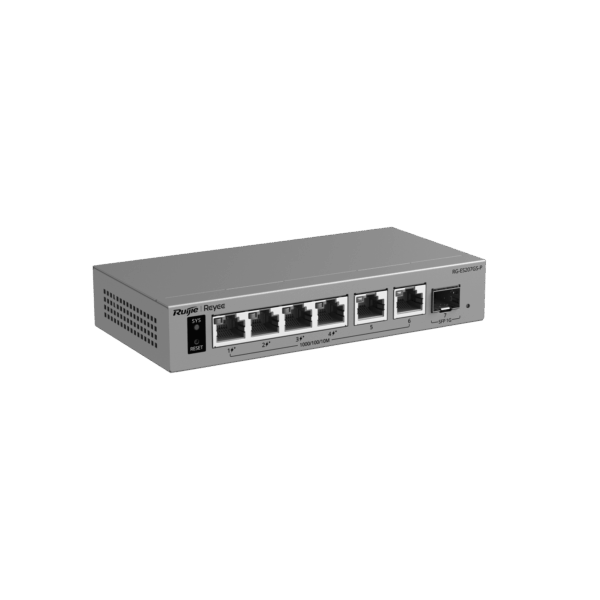

RG-ES207GS-P

Ruijie Reyee RG-ES207GS-P

7-Port Gigabit Smart Cloud Managed PoE Switch

6×Gigabit RJ45 ports with 4×PoE+ and 1×Gigabit SFP uplink
Supports IEEE 802.3af/at with 54W PoE budget
Layer 2 Smart Managed Switch with Ruijie Cloud Management
Supports PoE Watchdog, Perpetual PoE and Port Isolation
14Gbps switching capacity with 10.41Mpps forwarding rate
Fanless metal design with 6kV surge protection for CCTV and SMB networks

หมวดหมู่: Reyee, Switch, อุปกรณ์เน็ตเวิร์ค (Network) ป้ายกำกับ: Reyee, Switch

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications Ruijie Reyee RG-ES207GS-P

Features	Description
Device Type	7-Port Gigabit Smart Cloud Managed PoE Switch
Ports	4 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Budget	54W Total PoE Budget
Switching Capacity	14Gbps
Forwarding Rate	10.42Mpps
MAC Address Table	2K Entries
Management	Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb
Surge Protection	6kV Port Surge Protection
Application	CCTV, Office, Hotel, Factory, Retail Store and SMB Network

Switch Type	Layer 2 Smart Cloud Managed PoE Switch
Network Ports	4 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port
Transmission Mode	Store-and-Forward
PoE Output	Up to 30W per PoE Port
Installation	Desktop / Wall Mount
Housing	Metal Enclosure, Fanless Design

SMART FEATURES
Cloud Management	Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud
IPC Recognition	Automatically Detects IP Cameras for CCTV Network Optimization
PoE Watchdog	Automatically Detects and Restarts Unresponsive PoE Devices
Perpetual PoE	Keeps Powering PoE Devices Even During Switch Restart
AI Failover	Maintains Network Service Continuity Automatically
One-Click CCTV Mode	Quick Optimization for Surveillance Networks
Port Isolation	Enhances Security by Isolating Downlink Ports

GENERAL
Power Supply	54V DC External Power Adapter
Maximum Power Consumption	58W (Full PoE Load)
Operating Temperature	0°C to 40°C
Dimensions	155 × 78 × 28mm
Warranty	3 Years

Note: Cloud management requires an Internet connection and a Ruijie Cloud account. Perpetual PoE keeps connected PoE devices powered during switch reboot. Product specifications and software features are subject to change without prior notice.

Important: The Ruijie Reyee RG-ES207GS-P is a 7-port Gigabit smart cloud managed PoE switch featuring 4 PoE+ ports, 2 Gigabit RJ45 uplink ports, 1 Gigabit SFP uplink, a 54W PoE budget, 14Gbps switching capacity, 10.42Mpps forwarding rate, Perpetual PoE, AI Failover, PoE Watchdog, One-Click CCTV Mode, 6kV surge protection, and lifetime cloud management. It is ideal for CCTV, office, hotel, retail, factory, and SMB network deployments.
