Specifications Ruijie Reyee RG-NBF2100S-8GT1SC
| Features | Specifications |
|---|---|
Switch |
|
| Product Type | 1G Layer 2 Cloud Managed Non-PoE e-Lighten Access Switch (ONU) |
| Switching Capacity | 18Gbps |
| Forwarding Rate | 13.392Mpps |
| MAC Address Table | Up to 8,000 MAC Addresses |
| Recommended Clients | Up to 100 Clients |
Port Specifications |
|
| Ethernet Ports | 8 × 10/100/1000BASE-T RJ45 |
| Optical Uplink | 1 × 1G SC Optical Port |
| PoE | Not Supported |
| Optical Connection | Direct Gigabit SC Fiber Connection without an Additional Fiber Module |
Optical and PON |
|
| PON Support | Supported |
| SC Optical Port | 1G SC Uplink |
| Optical Power Range | -28dBm to -8dBm |
| BOSA Transmit Power | 0 to 3dB |
| BOSA Receive Sensitivity | -8 to -28dB |
Management and Network Features |
|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| VLAN | VLAN Assignment Supported |
| Port Isolation | Supported |
| DHCP Snooping | Supported |
| Self-Organizing Networking | SON Supported |
| Loop Prevention | Supported |
| Remote Management | Remote Monitoring and Network Troubleshooting through Ruijie Cloud |
Camera Support |
|
| Recommended 2MP Camera Capacity | Up to 50 Cameras with H.265 |
| Recommended 4MP Camera Capacity | Up to 25 Cameras with H.265 |
Power and Environmental |
|
| Power Supply | External DC Power Adapter |
| Power Consumption | Less than 12W |
| EEE | Supported |
| Fan | Fanless Design |
| Port Surge Protection | Common Mode: 6kV |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
Physical |
|
| Installation | Desktop, Wall Mount or Weak-Current Box |
| Dimensions | 202 × 108 × 28mm |
| Weight | 0.5kg |
Certification and Warranty |
|
| Certifications | CE, CB, SDPPI |
| Warranty | 3 Years |

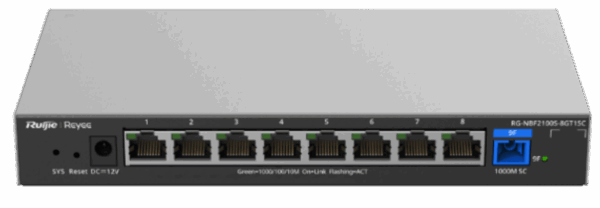

Note: The Ruijie Reyee RG-NBF2100S-8GT1SC is a 1G Layer 2 cloud-managed non-PoE e-Lighten access switch with 8 × Gigabit RJ45 ports and 1 × 1G SC optical uplink. It supports direct fiber connection, PON networking, VLAN assignment, port isolation, DHCP Snooping, Ruijie Cloud management and SON. The switch provides 18Gbps switching capacity, 13.392Mpps forwarding rate, 6kV port surge protection and a compact fanless design.
