RG-NBS3100-24GT4SFP-P-V2

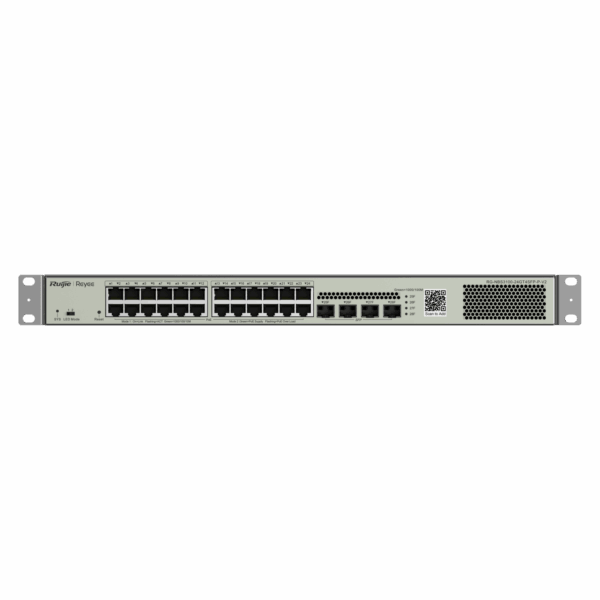

Ruijie RG-NBS3100-24GT4SFP-P-V2
28-Port Gigabit Layer 2 Cloud Managed PoE Switch
- 24×Gigabit PoE+ ports with 4×Gigabit SFP uplink ports
- Supports IEEE 802.3af/at with 370W PoE budget
- Layer 2 Cloud Managed Switch with Ruijie Cloud Management
- Supports IP Camera Recognition, VLAN, ACL, QoS and Link Aggregation
- 56Gbps switching capacity with 41.67Mpps forwarding rate
- 6kV surge protection with rackmount design for enterprise and CCTV networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2
| Features | Description |
|---|---|
| Device Type | 28-Port Gigabit Layer 2 Cloud Managed PoE Switch |
| Ports | 24 × 10/100/1000BASE-T PoE+ RJ45 Ports, 4 × Gigabit SFP Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 370W Total PoE Budget |
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.66Mpps |
| MAC Address Table | 8K Entries |
| Management | Cloud Managed via Ruijie Cloud, Reyee App and Web Management |
| Surge Protection | 6kV Port Surge Protection |
| Application | Enterprise, Office, Hotel, School, CCTV and SMB Networks |
| Switch Type | Layer 2 Cloud Managed PoE Switch |
|---|---|
| Network Ports | 24 × Gigabit PoE+ RJ45 Ports, 4 × Gigabit SFP Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | 19-inch Rack Mount |
| Cooling | Single Intelligent Cooling Fan |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Lifetime Free Cloud Management for Remote Monitoring and Configuration |
| IP Camera Recognition | Automatically Detects IP Cameras for Simplified CCTV Deployment |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Security | Supports ACL, 802.1X Authentication, DHCP Snooping, IP Source Guard and Port Security |
| Network Protection | Supports STP, RSTP, Loop Protection and Storm Control |
| VLAN | Supports Up to 4094 IEEE 802.1Q VLANs and Voice VLAN |
| QoS | Supports 802.1p, DSCP Priority and Traffic Management |
| Link Aggregation | Supports Static Link Aggregation and LACP |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz (Built-in Power Supply) |
| Maximum Power Consumption | 430W (Full PoE Load) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 × 215 × 44mm |
| Warranty | 5 Years |
Note: The RG-NBS3100-24GT4SFP-P-V2 is a 28-port Layer 2 cloud managed PoE switch featuring 24 Gigabit PoE+ ports, 4 Gigabit SFP uplinks, a 370W PoE budget, enterprise-class security, IP Camera Recognition, and lifetime Ruijie Cloud management. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2 is a 28-port Gigabit Layer 2 Smart PoE Switch with a 370W PoE budget, 4×Gigabit SFP uplinks, PoE Watchdog, VLAN, and Ruijie Cloud management—ideal for enterprise and CCTV networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
