| Features |
Description |
| Product Type |

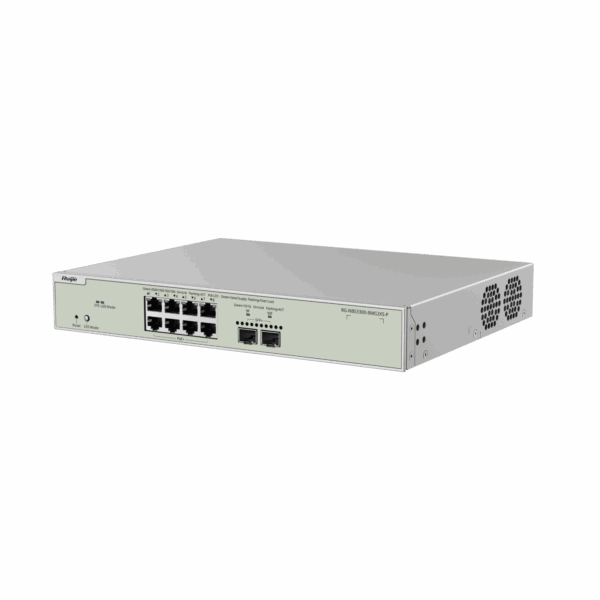

Layer 2+ Managed Multi-Gigabit PoE+ Switch |
| RJ45 Ports |
8 × 10/100/1000/2500BASE-T |
| PoE Ports |
8 × PoE+ |
| Uplink Ports |
2 × 10G SFP+ |
| PoE Budget |
240 W |
| Switching Capacity |
80 Gbps |
| Forwarding Rate |
59.52 Mpps |
| Management |
Ruijie Cloud / Web / Reyee App |
| Warranty |
5 Years |
| PORTS & POE |
| RJ45 Ports |
8 × 10/100/1000/2500BASE-T with auto-negotiation and Auto MDI/MDIX |
| PoE Standard |
IEEE 802.3af/at |
| PoE+ Ports |
Ports 1–8 |
| Maximum PoE Power |
Up to 30 W per port |
| Total PoE Budget |
240 W |
| PoE Power Pins |
1–2 (+), 3–6 (-) |
| PoE Watchdog |
Supported |
| UPLINK & PERFORMANCE |
| SFP+ Ports |
2 × 10GE/GE SFP+ |
| Switching Capacity |
80 Gbps |
| Forwarding Rate |
59.52 Mpps |
| Jumbo Frame |
Up to 9216 bytes |
| MTBF |
400,000 hours |
| NETWORK FEATURES |
| VLAN |
Supported |
| Link Aggregation |
Supported |
| IGMP Snooping |
Supported |
| Port Isolation |
Supported |
| Broadcast Storm Control |
Supported |
| CPU Protection |
CPP (CPU Protect Policy) |
| Cloud Management |
Ruijie Cloud and Reyee App |
| Zero-Touch Provisioning |
Supported via Ruijie Cloud |
| HARDWARE & POWER |
| Power Supply |
Fixed AC Power Supply |
| Rated Input Voltage |
100–240 V AC, 50/60 Hz |
| Maximum Input Voltage |
90–264 V AC, 47–63 Hz |
| Maximum Input Current |
4.5 A |
| Power Consumption |
27 W without PoE load; 278 W with full PoE load |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Cooling |
Air cooling with 2 fixed fans |
| Airflow |
Left-to-right |
| PHYSICAL & ENVIRONMENT |
| Enclosure |
Metal |
| Dimensions |
300 × 233 × 43.6 mm (W × D × H) |
| Weight |
2.64 kg |
| Mounting |
Rack Mount |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Operating Altitude |
-500 m to +5,000 m |
| Surge Protection |
Service port: ±6 kV common mode; Power connector: ±6 kV common and differential mode |
Note: The RG-NBS3300-8MG2XS-P is designed for high-speed Wi-Fi 6/7 deployments, providing 2.5G PoE+ access ports and 10G SFP+ uplinks for high-bandwidth network applications.
Important: Actual PoE power availability depends on the total connected load and the 240 W overall PoE budget. Supported SFP/SFP+ transceivers should be selected according to the manufacturer’s compatibility list.
