| Features |
Description |
| Device Type |
Wi-Fi 6 AX1800 Ceiling-Mount Access Point |
| Wireless Standard |
IEEE 802.11ax (Wi-Fi 6), Backward Compatible with 802.11a/b/g/n/ac |
| Maximum Wireless Speed |
Up to 1774 Mbps |
| Frequency Band |
2.4GHz + 5GHz Dual Band |
| MIMO |
2×2 MU-MIMO on 2.4GHz and 5GHz |
| Coverage |
Up to 125 m² (Environment Dependent) |
| Client Capacity |
Up to 256 Clients (Recommended 100 Clients) |
| Antenna |
Built-in Omni-directional Antenna |
| Network Port |
1 × Gigabit Ethernet Port (10/100/1000BASE-T) |
| Management |
Reyee Cloud / Ruijie Cloud Management |
| Security |
WPA/WPA2/WPA3 Encryption, SSID Isolation, VLAN Support |
| Power Supply |
PoE IEEE 802.3af/at |
| Wireless Standard |
IEEE 802.11ax Wi-Fi 6 |
| 2.4GHz Speed |
Up to 573 Mbps |
| 5GHz Speed |
Up to 1201 Mbps |
| Radio Design |
Dual Radio, 4 Spatial Streams |
| MIMO |
2×2 MU-MIMO (2.4GHz / 5GHz) |
| Channel Width |
2.4GHz: 20/40MHz, 5GHz: 20/40/80MHz |
| NETWORK |
| Ethernet Port |
1 × 10/100/1000BASE-T Gigabit Ethernet |
| Management |
Reyee Cloud Platform, Web Management, Mobile App |
| Operating Mode |
AP Mode, Mesh Mode |
| Mesh Support |
Reyee Mesh Technology |
| Optimization |
AI Wireless Optimization (WIO) |
| WIRELESS FEATURES |
| SSID |
Multiple SSID Support |
| Roaming |
Layer 2 Roaming Support |
| MU-MIMO |
Supports Multi-User MIMO |
| OFDMA |
Wi-Fi 6 OFDMA Technology |
| Guest Network |
Guest Wi-Fi Portal Support |
| SECURITY |
| Encryption |
WPA-PSK/WPA2-PSK/WPA3 |
| Network Security |
SSID Isolation, Client Isolation |
| Authentication |
Portal Authentication Support |
| VLAN |
802.1Q VLAN Support |
| GENERAL |
| Power Supply |
IEEE 802.3af/at PoE |
| Power Consumption |
≤ 12.95W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| Installation |
Ceiling Mount |
| Dimensions |
Ø175 × 39 mm |
| Weight |
Approx. 400 g |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

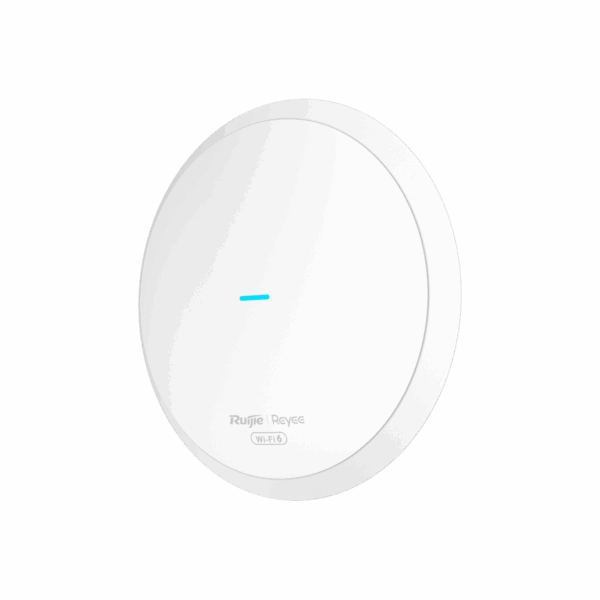

Important: The Ruijie Reyee RG-RAP62 is a Wi-Fi 6 AX1800 ceiling-mounted access point designed for business and enterprise wireless networks. It supports dual-band Wi-Fi 6 technology, 2×2 MU-MIMO, Reyee Mesh, AI Wireless Optimization, cloud management, Gigabit Ethernet, and PoE power supply. It is suitable for offices, hotels, schools, restaurants, and small to medium-sized network deployments.
