RG-RAP6202(G)

RG-EAP6202 Ruijie RG-RAP6262 RG-RAP6202(G)
Reyee RG-EAP602 Outdoor Wireless Access Point ac Wave 2
Reyee RG-EAP602 Outdoor Wireless Access Point ac Wave 2
Reyee RG-EAP602 Outdoor Wireless Access Point ac Wave 2

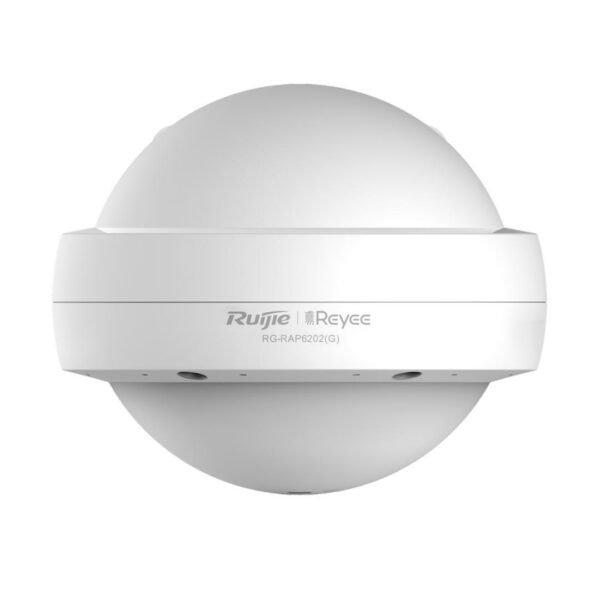

RG-RAP6202(G)

Reyee รุ่น RG-RAP6202(G)

Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point

Highlight Features

  • ‘UFO’ design, a perfect blend of wireless technology and artwork
  • IP68 protection, rock-solid in harsh environments
  • Omni-directional coverage with long range
  • Easily add extra outdoor Wi-Fi with Reyee Mesh
  • Rack-separated mounting design, easily installation on high

คุณสมบัติ

  • RG-RAP6202(G) Wireless Access Point แบบติดตั้งภายนอกอาคาร
  • มาตรฐาน ac Wave 2 ความเร็ว 1.267 Gbps (2.4GHz: 400Mbps, 5GHz: 867Mbps)
  • 2 Port Lan Gigabit
  • รองรับอุปกรณ์ใช้งานสูงสุด 164 อุปกรณ์
  • 300 ม.รัศมีครอบคลุม (สภาพแวดล้อมที่เปิดกว้างและไม่มีสิ่งกีดขวาง)
  • กันฝุ่นกันฝนมาตรฐาน IP68
  • พร้อม Ruijie Cloud License แบบ Lifetime
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Reyee RG-RAP6202(G)

RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point

Highlight Features RG-RAP6202(G)

  • ‘UFO’ design, a perfect blend of wireless technology and artwork
  • IP68 protection, rock-solid in harsh environments
  • Omni-directional coverage with long range
  • Easily add extra outdoor Wi-Fi with Reyee Mesh
  • Rack-separated mounting design, easily installation on high

Product Specification RG-EAP6202(G)

Overview

Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 6 Wireless Access Point แบบติดตั้งภายนอกอาคาร มาตรฐาน ac กระจายสัญญาณรอบทิศทาง ความเร็ว 1267Mbps, Port Lan Gigabit รองรับ POE (ไม่มีในชุดอุปกรณ์), กันฝุ่นกันฝนมาตรฐาน IP68

พร้อม Ruijie Cloud License แบบ Lifetime
Wi-Fi Standards Wi-Fi 5 (IEEE 802.11ac Wave2)
Wi-Fi 4(IEEE 802.11n)
RF Design 2.4 GHz, 2×2, MU-MIMO 5 GHz, 2×2, MU-MIMO
Max. Wi-Fi Speed 2.4 GHz: 400 Mbps
5 GHz: 867 Mbps
Antenna 4
Antenna Type Built-In Omnidirectional
Antenna Gain 2.4 GHz: 3 dBi 5 GHz: 3 dBi
Transmit Power EIRP
≤ 26 dBm(2.4GHz)
≤ 27 dBm(5GHz )
country-specific restrictions applyThailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm
Fixed Ports 2×10/100/1000 Base-T
Max. Clients 110
Recommended Clients 96
Max. SSIDs 8
Software Feature
WLAN Basic Features
SSID Hiding Support
Power Adjustment Support
Roaming Layer 2 roaming
Layer 3 roaming
OFDMA Support
Target wake time (TWT)* Support
WMM Support
Radar Signal Detection and Frequency Hopping Support
WLAN Security
Security Mode WPA-PSK, WPA2-PSK, WPA/WPA2-PSK;
Blacklist and Whitelist Support
Enhanced User Experience
Wi-Fi Optimization Support
Automatic RF adjustment via the platform Support
User Isolation Layer 2 user isolation
STA limit Support
Removing Low-RSSI STAs Support
Configuring STAs’ RSSI Threshold Support
Average Speed Threshold Support
Adjusting Sending Rate of Beacon and Probe Response Support
Syslog Recording Why Users Lose Connection Support
Auto Channel and Power Adjustment on Cloud Support
RSSI Threshold for STA Access Support
Quick channel adjustment (auto channel selection) Support
Networks
Network Access Mode DHCP Client
VLAN Support
System
Cloud Management Support
App Management Support
App Upgrade Support
App Restart Support
Scheduled Restart Support
Local Upgrade Support
Online Upgrade Support
Factory Reset Support
WLAN Features
Frequency Bandwidth 2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
Recommended Wi-Fi Coverage Radius 2.4G 50m, 5G 150m
Max. Wi-Fi Coverage Radius 2.4G 100m, 5G 300m
Operation Frequency Bands 802.11b/g/n: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac: 5.470 to 5.725 GHz , 5.725 to 5.850 GHz
country-specific restrictions apply
Receive Sensitivity 802.11b: -91 dBm(1Mbps)，-88 dBm(5.5Mbps)，-85 dBm(11Mbps)
802.11a/g: -89 dBm(6Mbps), -80 dBm(24Mbps), -76 dBm(36Mbps), -71dBm(54Mbps)
802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
802.11ac VHT20: -83 dBm(MCS0), -57 dBm(MCS9)
802.11ac VHT40: -79 dBm(MCS0), -57 dBm(MCS9)
802.11ac VHT80: -76 dBm(MCS0), -51 dBm(MCS9)
Physical
LED Indicator 3 x system LED indicator
Buttons 1 x Reset button
Dimensions (W x D x H) 200mm × 220mm × 166mm(Without Mounting Bracket)
Weight 1.0kg(Without Mounting Bracket)
Power
Power Supplies IEEE 802.3at PoE DC 12V/1.5A (ไม่มี POE Injector/ DC Adapter ในชุดอุปกรณ์)
Power Consumption ≤ 13W
DC Port Dimensions Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm
Environmental
Operating Temperature -30°C to 65°C
Storage Temperature -40°C to 85°C
Operating Humidity 0% to 100% (Noncondensing)
Storage Humidity 0% to 100% (Noncondensing)
IP(Ingress Protection) IP68
Port Surge 4 kV
MTBF >250000H

ประกัน

3 ปี

ดาวน์โหลด

PDF Download
