| Features |
Description |
| Product Type |
Wi-Fi 7 BE14000 Tri-Band Ceiling Access Point |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax/be |
| Radio Design |
Tri-Radio, 8 Spatial Streams |
| Frequency Bands |
2.4GHz + 5GHz + 6GHz |
| Maximum Wireless Data Rate |
13,657Mbps |
| Ethernet Port |
1 × 10/100/1000/2500BASE-T |
| SFP+ Port |
1 × 10GE SFP+ |
| Wi-Fi 7 Features |
MLO / 4K-QAM / 320MHz / MRU |
| Management |
Ruijie Cloud / Web / Ruijie Reyee App |
| Maximum Clients |
600 |
| WIRELESS |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax/be |
| Radio Design |
Tri-Radio, 8 Spatial Streams |
| 2.4GHz Radio |
2 × 2 MU-MIMO, Up to 688Mbps |
| 5GHz Radio |
3 × 3 MU-MIMO, Up to 4,323Mbps |
| 6GHz Radio |
3 × 3 MU-MIMO, Up to 8,646Mbps |
| Maximum Wireless Data Rate |
13,657Mbps |
| 6GHz Channel Width |
Auto / 20 / 40 / 80 / 160 / 320MHz |
| 5GHz Channel Width |
Auto / 20 / 40 / 80 / 160MHz |
| 2.4GHz Channel Width |
Auto / 20 / 40MHz |
| OFDMA |
Supported |
| MU-MIMO |
Supported |
| BSS Coloring |
Supported |
| ANTENNA |
| Antenna Type |
Built-in Omnidirectional Antennas |
| 2.4GHz Antenna |
2 × Built-in Antennas, 3.6dBi |
| 5GHz Antenna |
3 × Built-in Antennas, 5.9dBi |
| 6GHz Antenna |
3 × Built-in Antennas, 5.2dBi |
| Antenna Configuration |
2 × 2 @ 2.4GHz / 3 × 3 @ 5GHz / 3 × 3 @ 6GHz |
| WI-FI 7 FEATURES |
| Multi-Link Operation |
MLO Supported |
| 4K-QAM |
Supported |
| 320MHz Channel |
Supported |
| Multiple Resource Unit |
MRU Supported |
| 1K Block Acknowledgment |
Supported |
| Beamforming |
Supported |
| Spatial Reuse |
Supported |
| NETWORK INTERFACE |
| Ethernet Port |

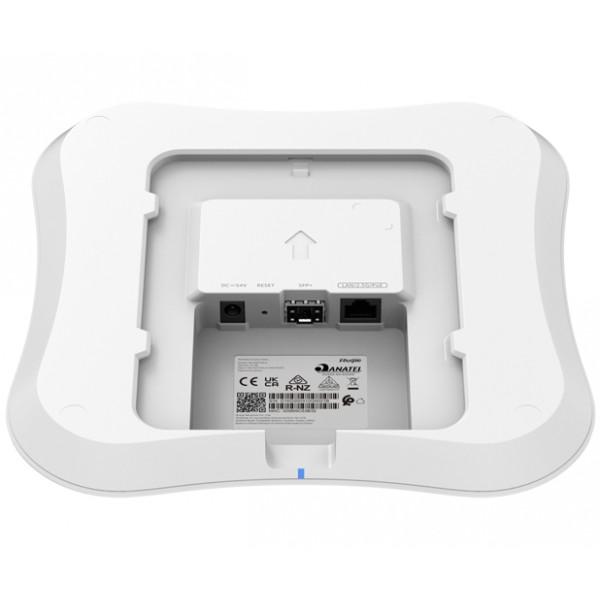

1 × 10/100/1000/2500BASE-T RJ45 |
| SFP+ Port |
1 × 10GE SFP+ |
| Fiber Backhaul |
Supported |
| VLAN |
IEEE 802.1Q VLAN |
| IPv6 |
Supported |
| NAT |
Supported |
| PERFORMANCE |
| Maximum Wireless Data Rate |
13,657Mbps |
| 2.4GHz Data Rate |
688Mbps |
| 5GHz Data Rate |
4,323Mbps |
| 6GHz Data Rate |
8,646Mbps |
| Maximum Clients |
600 |
| Recommended Clients |
200 |
| Maximum SSIDs |
8 |
| Maximum APs in SON |
300 |
| Maximum Clients in AP SON |
1,500 |
| ROAMING & OPTIMIZATION |
| AI Roaming |
Supported |
| Layer 2 Roaming |
Supported |
| Layer 3 Roaming |
Supported |
| IEEE 802.11k/v |
Supported |
| IEEE 802.11r |
Supported |
| AP Load Balancing |
Supported |
| RF Beamforming |
Supported |
| Wireless Intelligent Optimization |
WIO / WIO 2.0 Supported |
| Reyee AP Mesh |
Supported |
| SECURITY |
| Wireless Security |
WPA / WPA2 / WPA3 |
| WPA3-SAE |
Supported |
| WPA2-PSK / WPA3-SAE |
Supported |
| OWE |
Supported |
| WPA-Enterprise |
Supported |
| 802.1X |
Supported |
| RADIUS |
Supported |
| Layer 2 Client Isolation |
Supported |
| MAC Allowlist / Blocklist |
Supported |
| MANAGEMENT |
| Cloud Management |
Ruijie Cloud |
| Web Management |
Supported |
| Mobile Management |
Ruijie Reyee App |
| Local Management |
Supported |
| Network Optimization |
WIO / WIO 2.0 |
| AP Mesh |
Supported |
| Remote Client Management |
Supported |
| POWER |
| Power Supply |
DC Power Adapter / PoE+ / PoE++ |
| DC Input |
54VDC, 0.55A |
| PoE Standard |
IEEE 802.3at / IEEE 802.3bt |
| PoE Budget |
No |
| Maximum Power Consumption |
<30W |
| PHYSICAL & GENERAL |
| Installation |
Ceiling / Wall Mount |
| Dimensions |
220 × 220 × 45mm |
| Color |
White |
| Net Weight |
≤1.1kg |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
5%–95% RH, Non-Condensing |
| IP Rating |
IP41 |

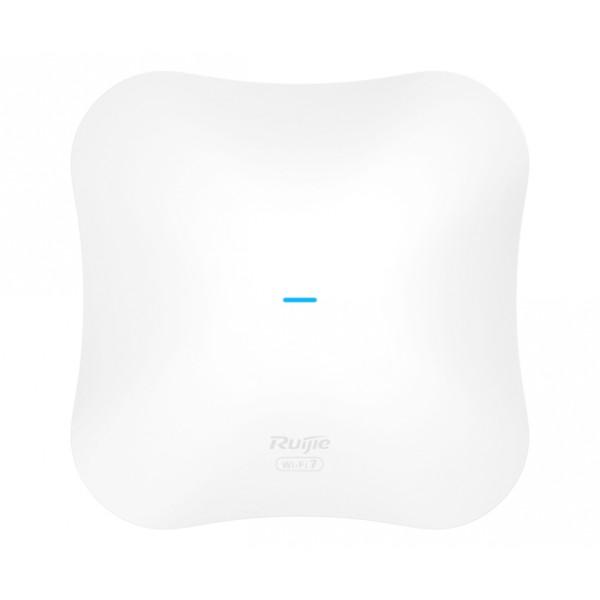

Note: The Ruijie Reyee RG-RAP73Pro is a Wi-Fi 7 BE14000 Tri-Band Ceiling Access Point designed for high-density indoor environments. It features 2.4GHz 2×2, 5GHz 3×3 and 6GHz 3×3 MU-MIMO radios with 8 spatial streams and a maximum wireless data rate of 13,657Mbps. It supports Wi-Fi 7 technologies including MLO, 4K-QAM, 320MHz channels and MRU, together with a 2.5GbE RJ45 port and 10GE SFP+ port for high-speed backhaul.
Important: The Ruijie Reyee RG-RAP73Pro is a Wi-Fi 7 Tri-Band Ceiling Access Point supporting 2.4GHz + 5GHz + 6GHz with up to 13,657Mbps wireless speed. It provides 8 spatial streams, MLO, 4K-QAM, 320MHz channel width, 1 × 2.5GbE port and 1 × 10GE SFP+ port. It supports IEEE 802.3at/802.3bt PoE, Ruijie Cloud management and up to 600 wireless clients.
