| Features |
Description |
| Product Type |
Layer 2+ Managed Switch |
| Gigabit RJ45 Ports |
24 × 10/100/1000BASE-T |
| SFP Uplink Ports |
4 × 1GE/2.5GE SFP |
| PoE |
Not Supported |
| Switching Capacity |
68Gbps |
| Packet Forwarding Rate |
51Mpps |
| Management |
Ruijie Cloud / Web / CLI / SNMP / Telnet / SSH |
| Layer |
Layer 2+ |
| HARDWARE |
| RJ45 Ports |
24 × 10/100/1000BASE-T |
| SFP Ports |
4 × 1GE/2.5GE SFP |
| Console Port |
1 × RJ45 Console Port |
| USB Port |
1 × USB Port |
| CPU |
Single-Core CPU, 1.2GHz |
| Memory |
512MB DDR4 |
| Flash Memory |
64MB |
| Switch Buffer |
512KB |
| MAC Address Table |
16,000 |
| PERFORMANCE |
| Switching Capacity |
68Gbps |
| Packet Forwarding Rate |
51Mpps |
| MAC Address Table |
16,000 |
| ARP Table |
512 |
| IPv4/IPv6 Routing Entries |
64 |
| ACL Entries |
500 |
| Jumbo Frame |
Up to 9,216 Bytes |
| NETWORK FEATURES |
| VLAN |
IEEE 802.1Q, Up to 4,094 VLANs |
| Voice VLAN |
Supported |
| Port-Based VLAN |
Supported |
| QinQ |
Basic QinQ / Selective QinQ |
| STP |
STP / RSTP / MSTP |
| ERPS |
G.8032 |
| Link Aggregation |
LACP (IEEE 802.3ad) |
| LLDP |
LLDP / LLDP-MED |
| DHCP |
DHCP Client / Relay / Server / Snooping |
| IP Routing |
Static Routing / RIP / RIPng / OSPFv2 |
| IGMP Snooping |
IGMP v1 / v2 Snooping |
| EEE |
IEEE 802.3az Energy Efficient Ethernet |
| SECURITY |
| Authentication |
802.1X / MAC-Based Authentication / Web Authentication |
| AAA |
RADIUS / TACACS+ |
| ACL |
Standard IP ACL / Extended IP ACL / Extended MAC ACL / Expert-Level ACL / IPv6 ACL |
| ACL Entries |
Up to 500 |
| IP Source Guard |
Supported |
| CPP |
CPU Protection Policy |
| NFPP |
Supported |
| HTTPS |
Supported |
| SSH |
SSH v1 / SSH v2 |
| MANAGEMENT |
| Cloud Management |
Ruijie Cloud |
| Web Management |
Supported |
| CLI |
Telnet / Console |
| SNMP |
SNMP v1 / v2c / v3 |
| RMON |
Supported |
| sFlow |
Supported |
| RSPAN |
Supported |
| NTP |
Supported |
| TFTP Client |
Supported |
| Syslog |
Supported |
| CWMP |
TR-069 Supported |
| gRPC |
Supported |
| RELIABILITY |
| RLDP |
Rapid Link Detection Protocol |
| Loop Detection |
Supported |
| Temperature Monitoring |
Supported |
| Temperature Alarm |
Supported |
| Overtemperature Protection |
Supported |
| Cable Hot Swapping |
Supported on All Ports |
| POWER & GENERAL |
| Power Supply |
1 × Fixed Power Supply |
| Power Input |
100–240V AC, 50/60Hz |
| Maximum Input Voltage |
90–264V AC, 47–63Hz |
| Maximum Input Current |
0.6A |
| Maximum Power Consumption |
15.6W |
| Dimensions |
440 × 220 × 43.5mm |
| Rack Height |
1U |
| Unit Weight |
2.5kg |
| Cooling |
Fanless Design |
| Heat Dissipation |
Natural Heat Dissipation |
| Operating Temperature |
0°C to 45°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Operating Altitude |
0–5,000m |
| PROTECTION |
| Telecom Port Surge Protection |
Up to 10kV |
| Power Port Surge Protection |
Common Mode 6kV / Differential Mode 2kV |
| ESD Protection |
Air Discharge: 8kV / 15kV; Contact Discharge: 6kV / 8kV |

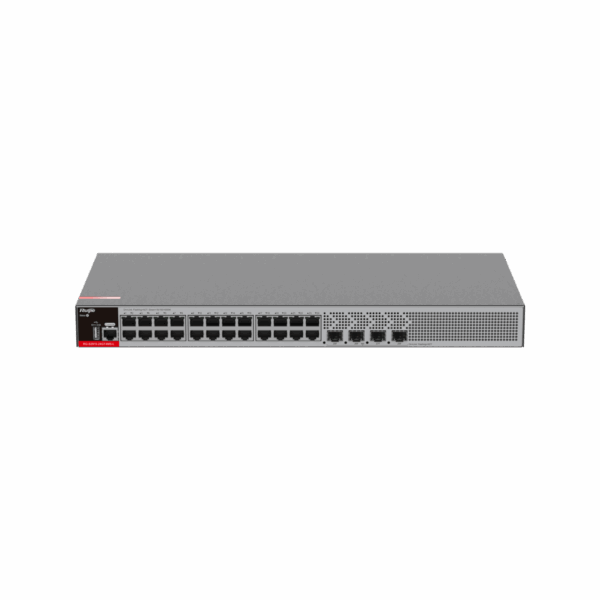

Note: The Ruijie RG-S2915-24GT4MS-L is a Layer 2+ Managed Switch featuring 24 × 10/100/1000BASE-T RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports. It provides 68Gbps switching capacity and 51Mpps packet forwarding performance. The switch supports IEEE 802.1Q VLAN, STP/RSTP/MSTP, ERPS, LACP, LLDP, DHCP, Static Routing, RIP/RIPng, OSPFv2, ACL, 802.1X, SNMP and Ruijie Cloud management. The switch uses a fanless design with natural heat dissipation and consumes up to 15.6W.
Important: The Ruijie RG-S2915-24GT4MS-L is a Layer 2+ Managed Switch with 24 × Gigabit RJ45 ports and 4 × 1GE/2.5GE SFP uplink ports. PoE is not supported on this model. It provides 68Gbps switching capacity and 51Mpps packet forwarding rate. The switch supports Ruijie Cloud management, VLAN, STP/RSTP/MSTP, ERPS, LACP, ACL, 802.1X, Static Routing, RIP/RIPng and OSPFv2. It also features 10kV telecom-port surge protection, CPP CPU protection and RLDP for reliable network operation. The fanless design provides natural heat dissipation with a maximum power consumption of only 15.6W.
