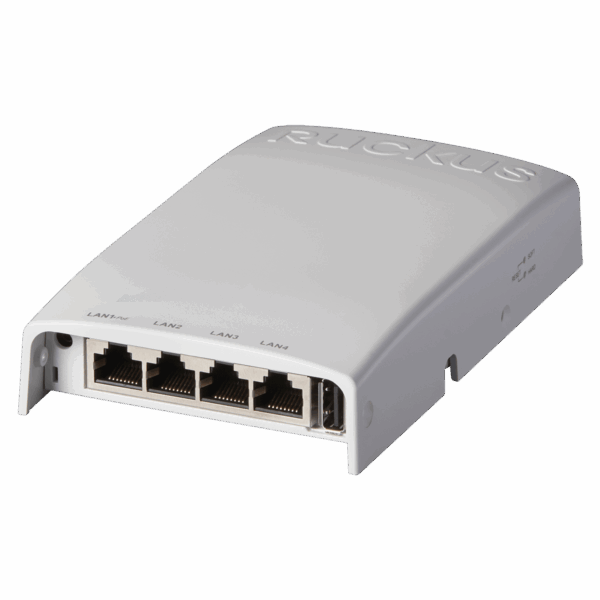

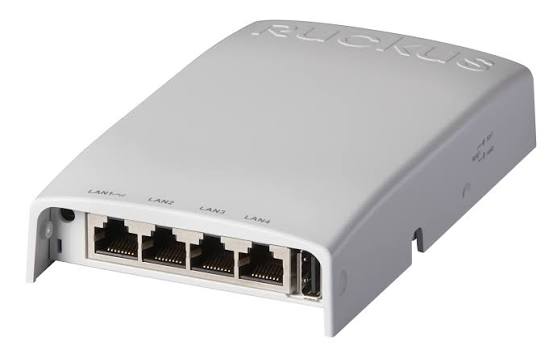

RUCKUS H510
RUCKUS รุ่น H510
Indoor Access Point
คุณสมบัติ
- Wall-Mounted 802.11ac Wave 2 Wi-Fi Indoor Access Point (AP) and Switch for Dense Client Environments
- 2×2:2 MU-MIMO
- Dual-band concurrent (5GHz/2.4GHz)
- 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user data rate
- 5 พอร์ตแลน 10/100/1000 MbE
- BeamFlex+ เทคโนโลยี่ ลดการรบกวนของสัญญาณ
- Capable of supporting up to 100 clients
- Lifetime Limited Warranty
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
General Specifications
| Antenna Patterns, per band | 4 |
| Antenna Gain | Up to 1 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 100 |
| Controller Support | RUCKUS Cloud | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 5 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
| PHY Rate at 5 GHz, maximum | 867 Mb/s |
| Radio Chains and Streams | 2×2:2 |
| Rx Sensitivity at 2.4 GHz | -99 dBm |
| Rx Sensitivity at 5 GHz | -96 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality |
| Venue Sub-Type | Guest Rooms | Residence Hall |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
